Home
>>
BMW
>>
1994
>>
530i (E34) V8-2997cc 3.0L DOHC (M60)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
System Diagram
>>
Slip Control (ABS)
>>
Without Traction Control
>>
Version A
>>
Slip Control (ABS)
Slip Control (ABS)

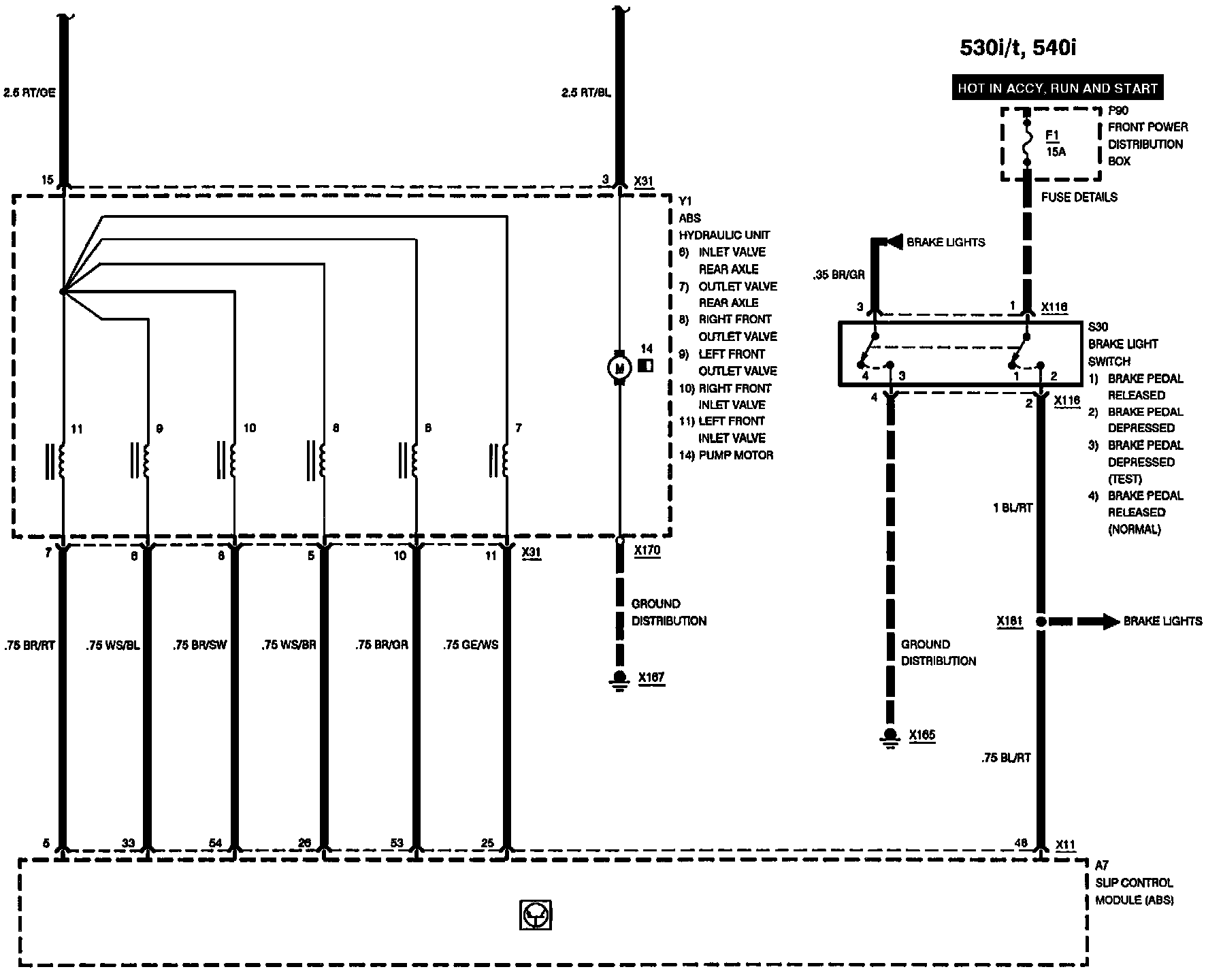

Slip Control (ABS) (Part 1 Of 5):
Slip Control (ABS) (Part 2 Of 5):
Slip Control (ABS) (Part 3 Of 5):
Slip Control (ABS) (Part 4 Of 5):
Slip Control (ABS) (Part 5 Of 5):
