Check Control Interface

The early version traction control system used the check control matrix for driver warning of a traction control regulation. This early version did not contain the ASC warning lamp in the instrument cluster.

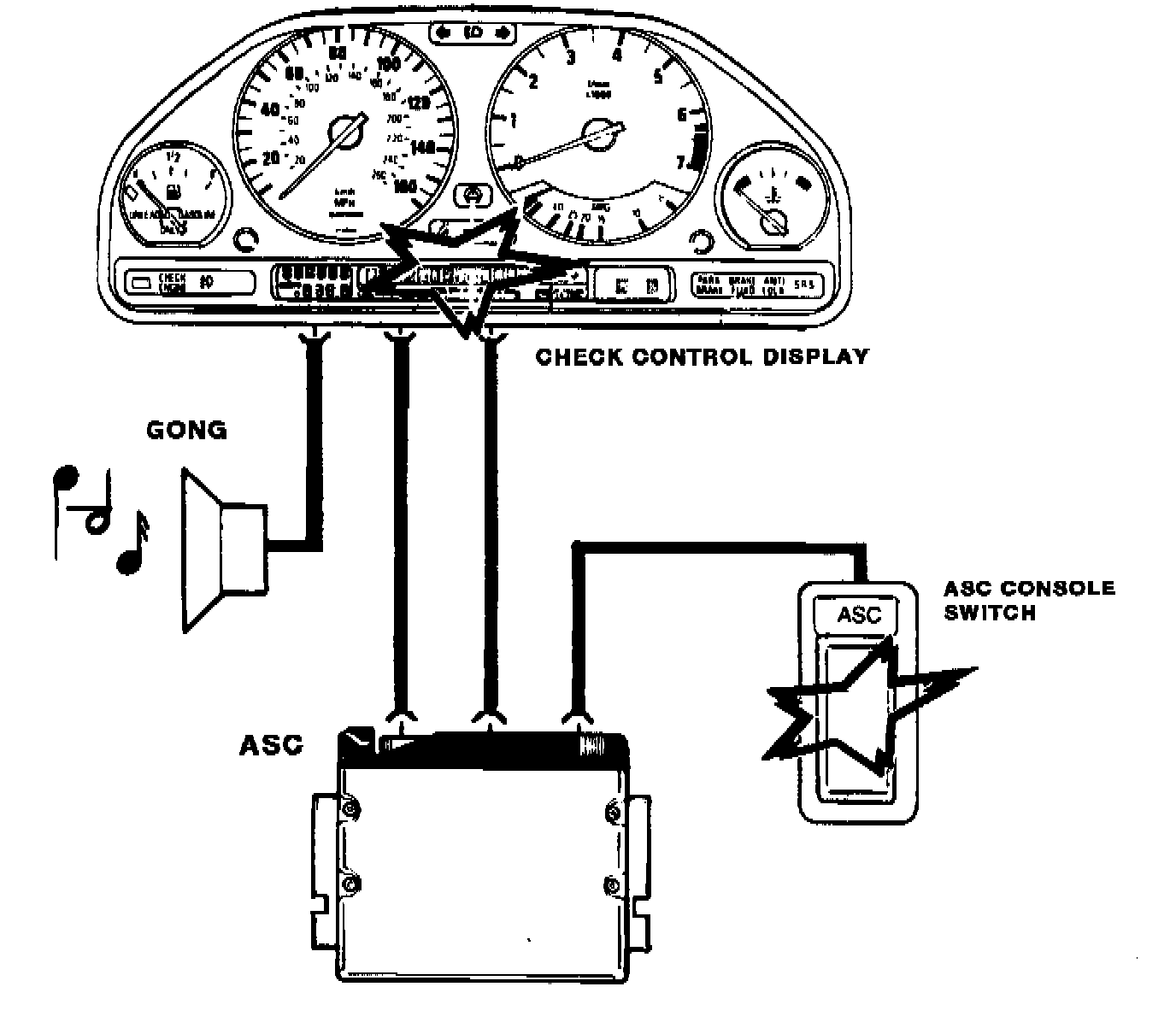

During Automatic Slip Control (ASC) regulation, the control module signals the check control to post the ASC display in the matrix.
