EGS/AGS Shift Intervention

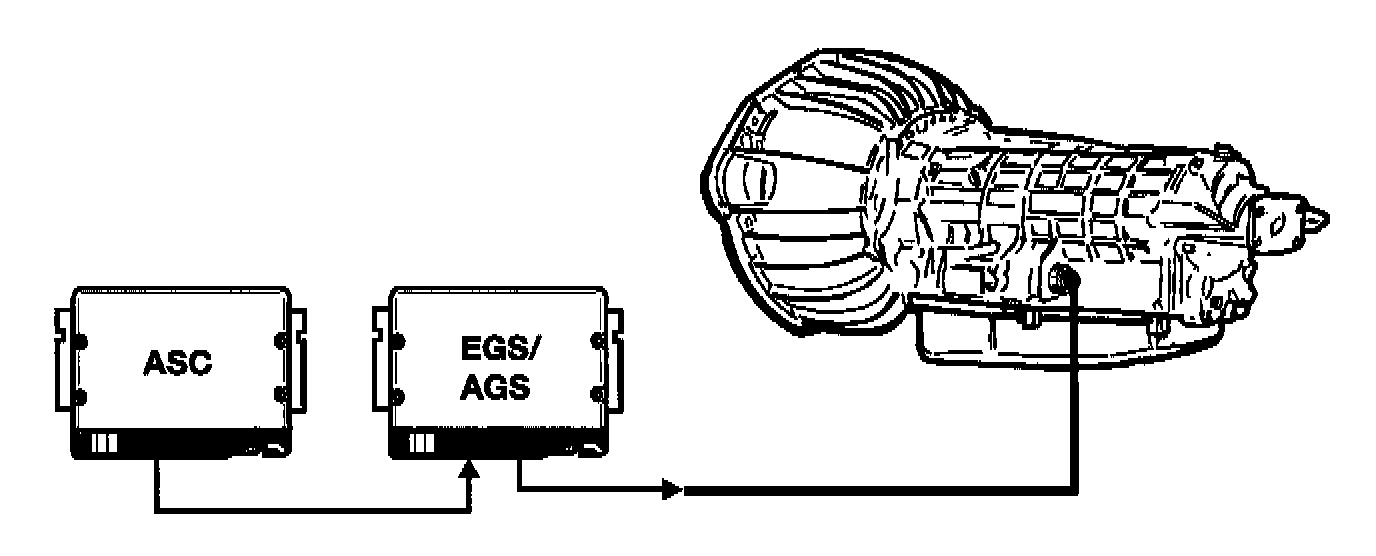

A signal is sent to the EGS/AGS control module, by the ASC control module during ASC regulation. The EGS/AGS will modify the shift characteristics to provide smooth shifting or suppress an oncoming gear change.

The Automatic Slip Control (ASC) control module produces the switched HIGH/LOW signal to the EGS/AGS control module to request the shift modification.
