Air Intake System

Intake System:

Intake manifold has been modified for noise reduction improvements. This was received by adding additional bracing ribs and increasing the wall thickness. An additional .vacuum tap is provided for vacuum operated sub-systems.

Intake System:

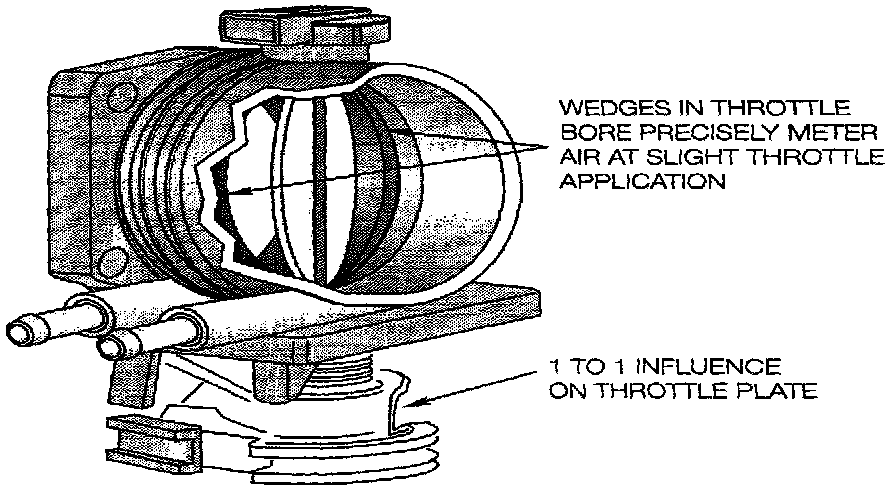

A newly designed throttle housing is used on the M52. Throttle plate movement is controlled through a simple circular pulley and bowden cable arrangement. This design ensures consistent smooth movement of the throttle plate with positive closure characteristics.
