Replacing Control Units/Relays Underneath Instrument Panel

Replacing Control Units/Relays Underneath Instrument Panel




- Remove instrument panelling at bottom left.

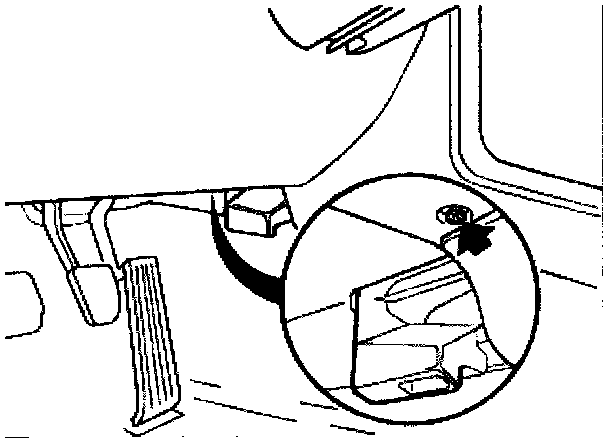

- Unscrew bolts.

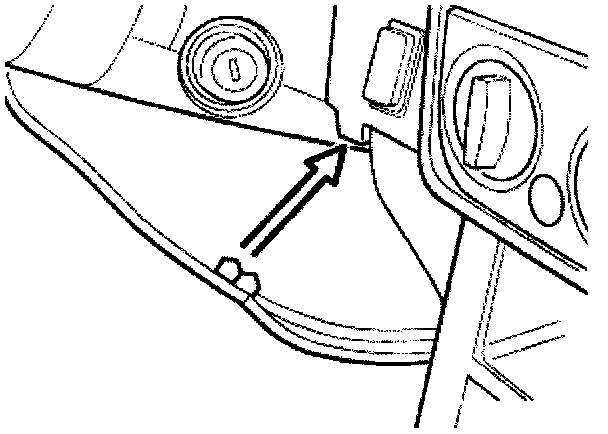

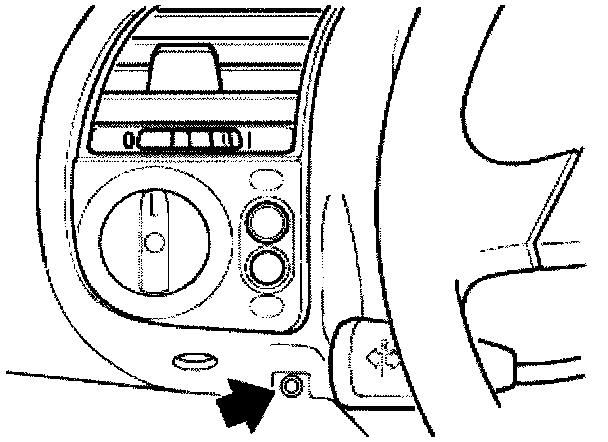

- Unscrew screw.

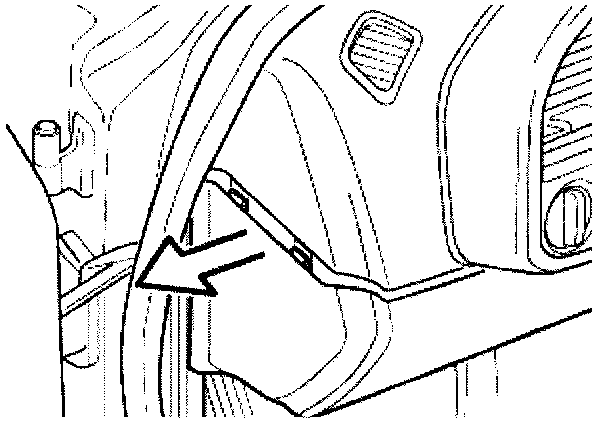

- Pull panelling to side out of clips.





- Pull front end of panelling in downward direction and remove.

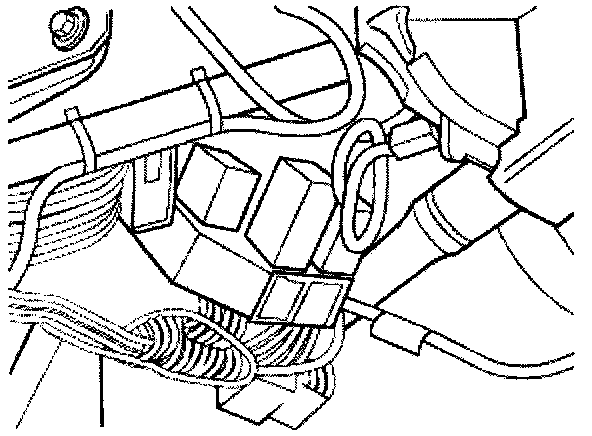

- Unclip relay holder under steering column.
