Engine Load (ti) and Engine Speed (TD)

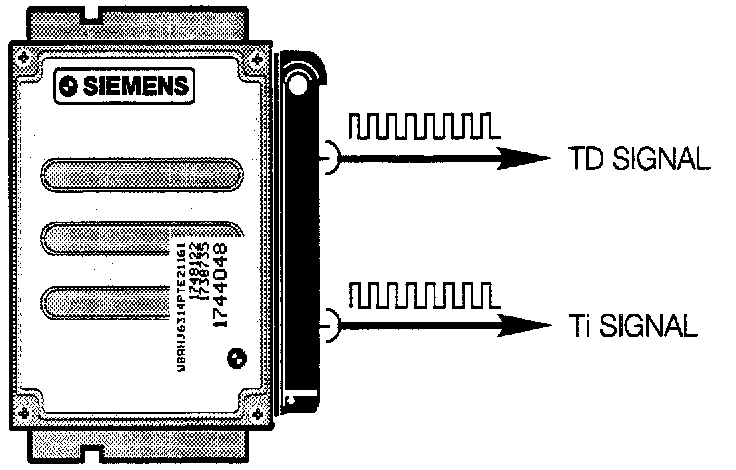

The "ti" and "TD" outputs of the MS41.1 Control Module are made available to other control modules that require engine load and speed for their operation (instrument cluster, on-board computer, etc.).

Both are digital square wave signals that represent the ms injection time for engine load and engine RPM for engine speed.
