840Ci & 740i Sport

840Ci & 740i Sport

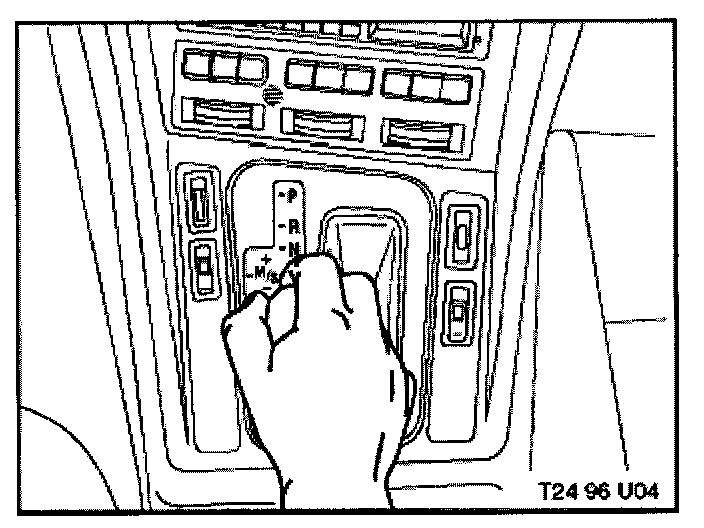

When the selector lever is placed in the "M/S" gate, the AGS selects the sport program similar to placing a non Steptronic shifter into the "4th gear" position.

The transmission shifts automatically, but all shifts occur at a higher RPM (sport program).

The instrument cluster indicates the current mode of operation. While in the automatic mode, it displays the position of the selector lever (P, R, N or D).

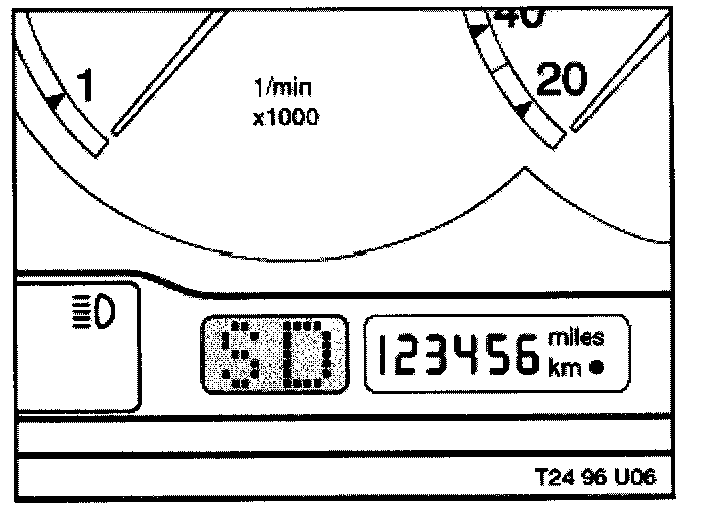

When in the M/S gate, the instrument cluster displays "SD"

Tapping the selector lever towards the ""+" or "-" positions initiates an up or downshift and also activates the manual Steptronic function. The transmission will shift up or down depending on the request.

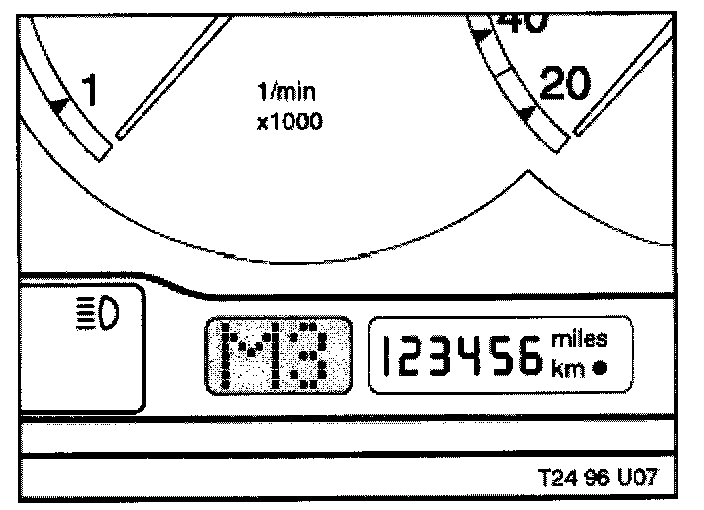

Once the manual gear is selected, the display will change to the "M" with the actual gear currently engaged "3".

Requests for not plausible shifts are only displayed momentarily, display then returns to current gear.

The gear range in the "SD" and "M" modes are from 1st to 5th gears.

Automatic functions in the Manual Mode:
The 840Ci and 740i Sport follow the same automatic functions while in manual mode as the 850Ci.

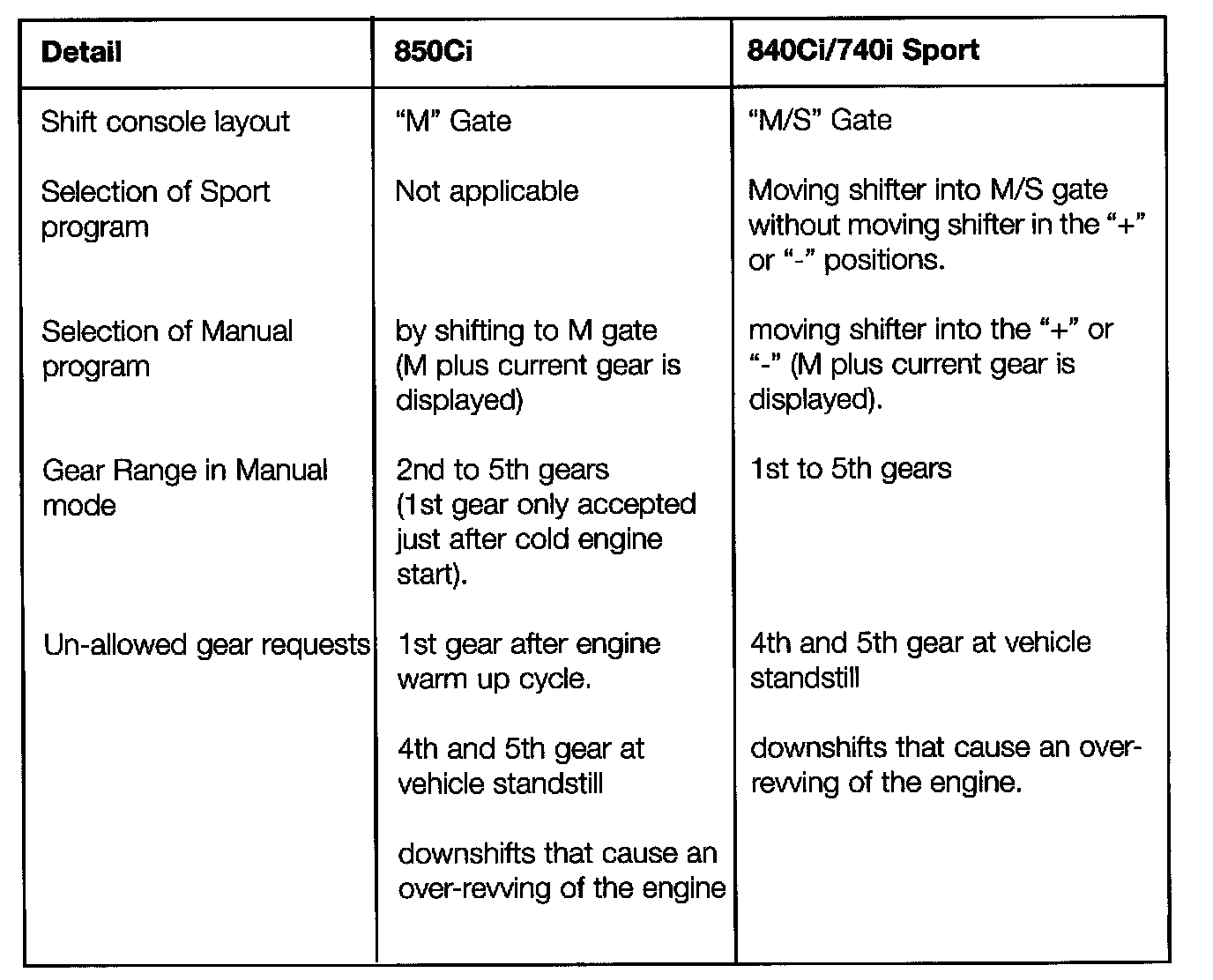

Differences of the 850Ci Steptronic system compared with the 840Ci/740i Sport:
