Replacing Brake Lines

Note: Brake pipes are only supplied straight, in correct length and fitted with connecting nipples.

Caution: Note refer to"General Data", found in Brakes and Traction Control, Description and Operation.

After completing work, bleed brake system.

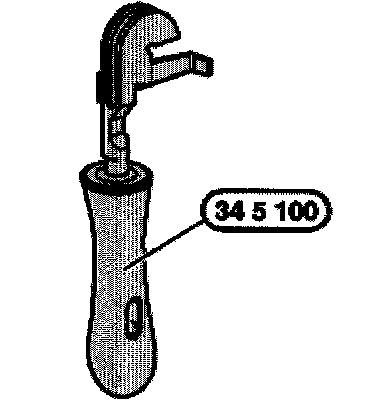

New brake pipes must be bent as required using special tool 34 5 100.
Removed brake pipes can be used as templates for bending.

Caution:
- Protective coat on brake pipes must not be damaged while bending.
- Brake pipes must not be bent back and forth.
- Watch distances to fixed and movable vehicle parts. Brake lines may not contact or rub.
- Tighten brake-pipe couplings with torque wrench.

Tightening torque, refer to Brakes, Specification
