Replacing Backrest For Rear Seat (Load Through System)

Removing and installing or replacing left or right backrest for rear seat (load through system)

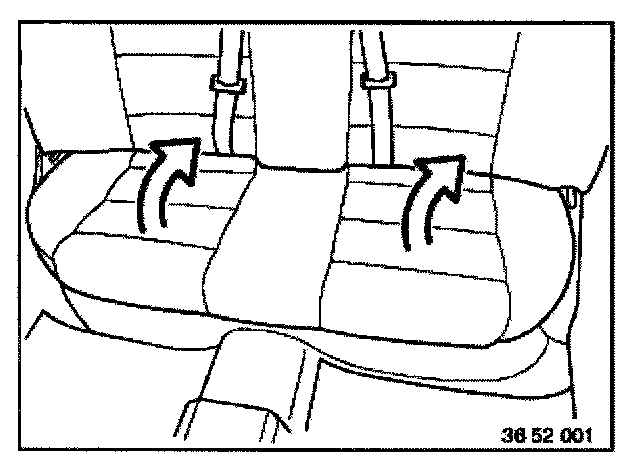

Unclip rear set cushion on left and right and lift out.

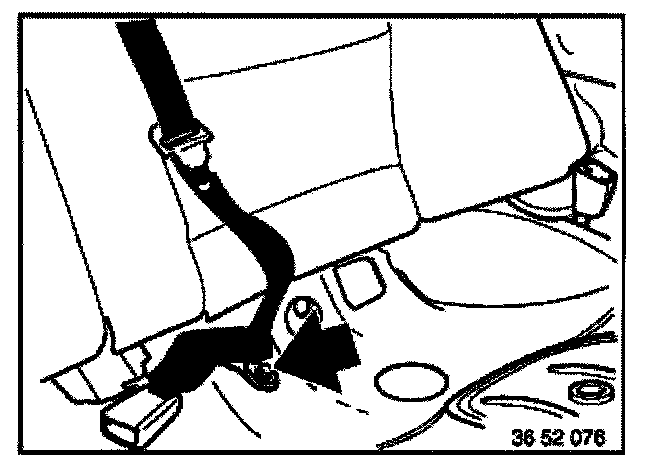

Unscrew bottom seat-belt bolt.

Installation:
Use washers.

Tightening torque - See Specifications

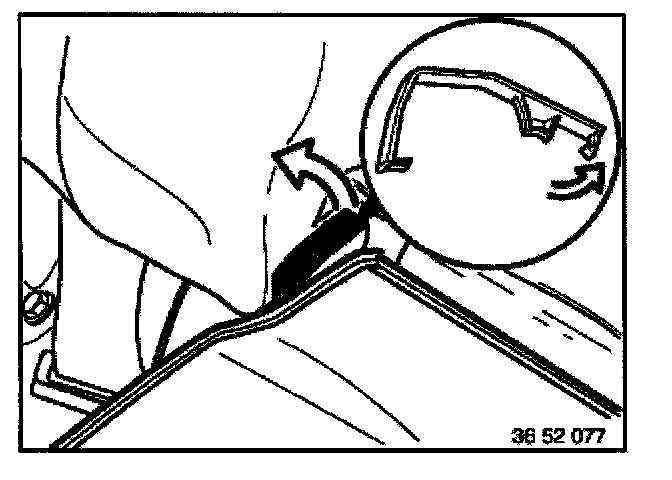

Tilt backrest forward and unclip plate.

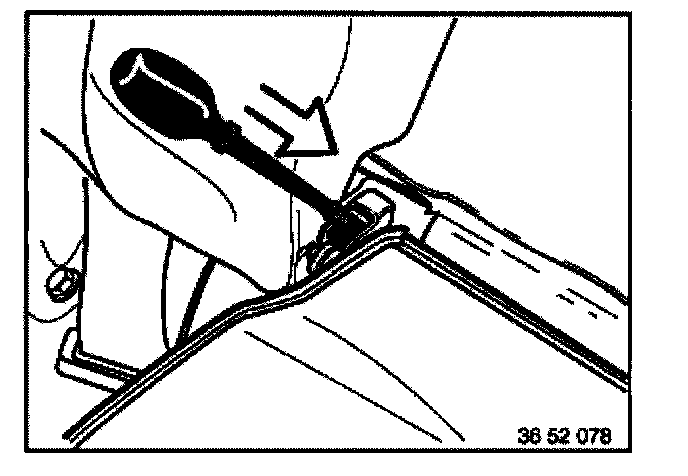

Push lock back and lift backrest out.
