Parking Brake Signal

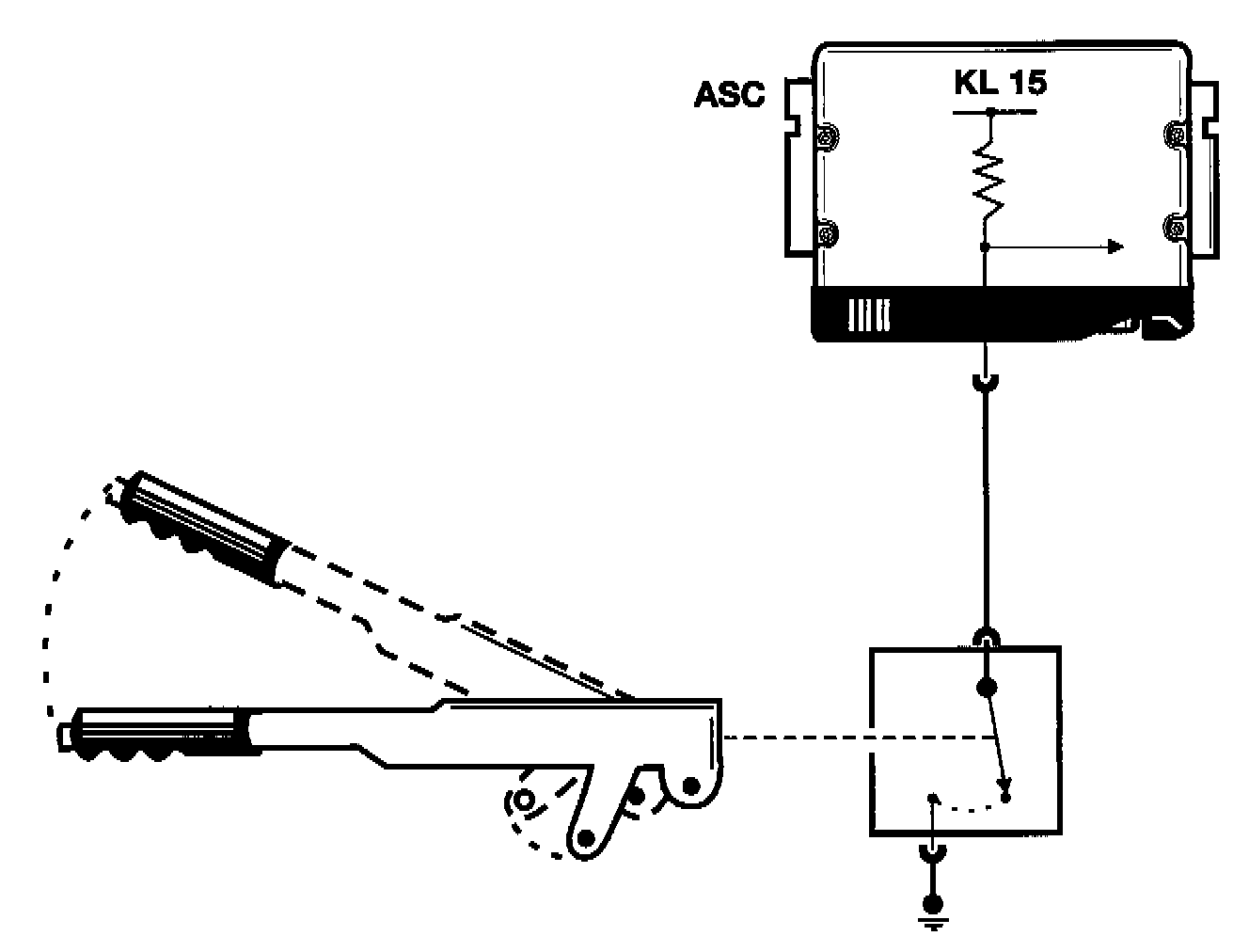

A signal indicating when the hand brake is "on" is provided to the ASC control unit and is used to discontinue MSR regulation. The control unit produces a voltage that is high (B+) with the hand brake off.

The voltage signal is pulled low with the hand brake "on", by the completed ground circuit through the switch.
