4 and 10 Pin Elo-Connector (Electronics Connector)

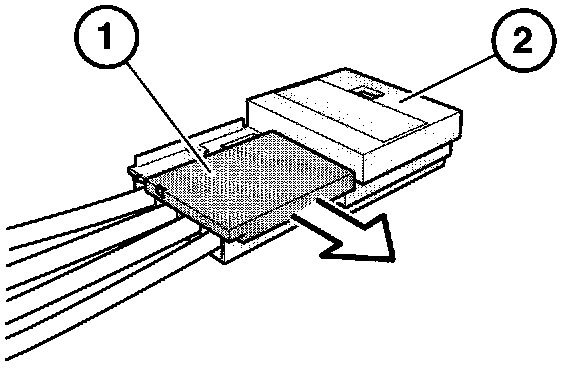

- Pull connector (1) (slide) off contact carrier (2).

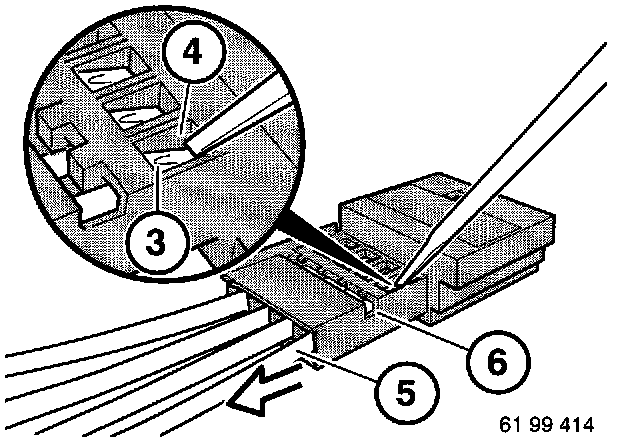

- Hold down arrester hook (3) of defective contact and pull cable and contact up to secondary lock (6).

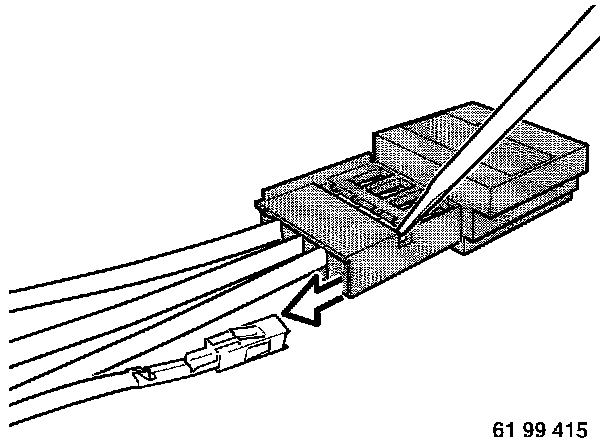

- Hold down arrester hook in secondary lock once again and pull cable and contact completely out of contact carrier.
