A197 Video Module

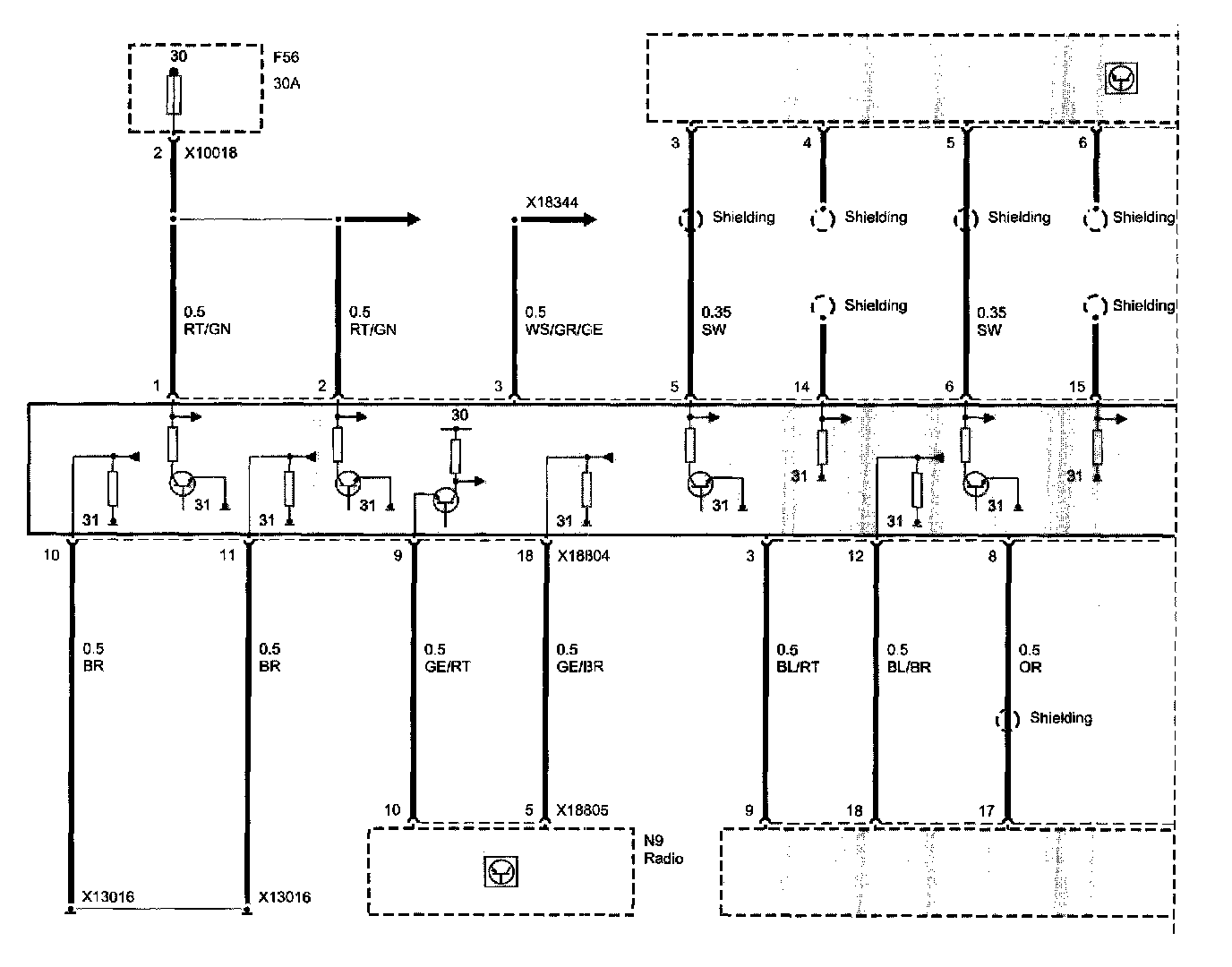

EWD-562 A197 Video Module (1 Of 2):

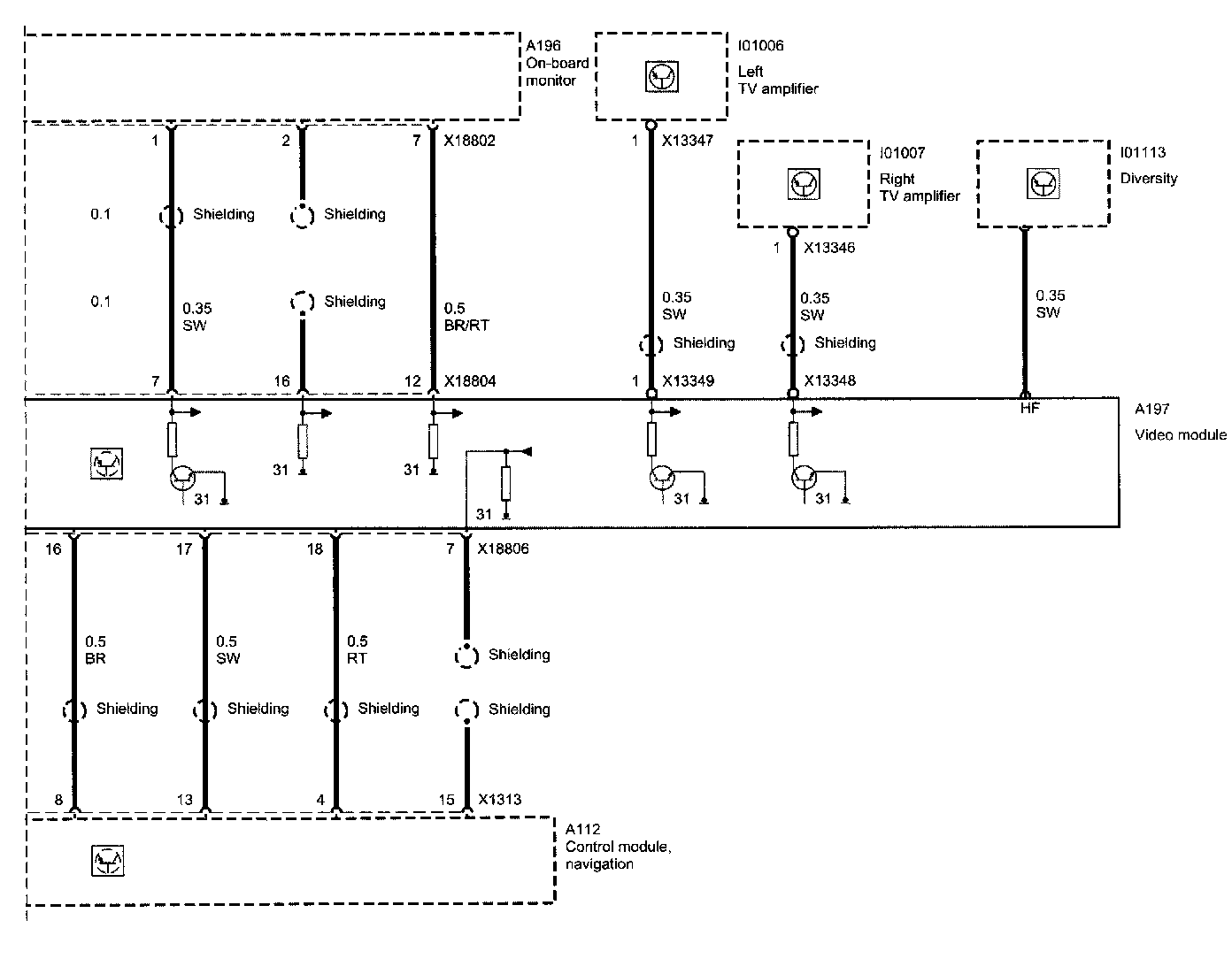

EWD-563 A197 Video Module (2 Of 2):

Master Wiring Diagram Index -- For a list of which diagrams show which components, please refer to the Master Wiring Diagram Index at the vehicle level. Master Wiring Diagram Index
