Keyless Entry Operation

Keyless Entry Operation

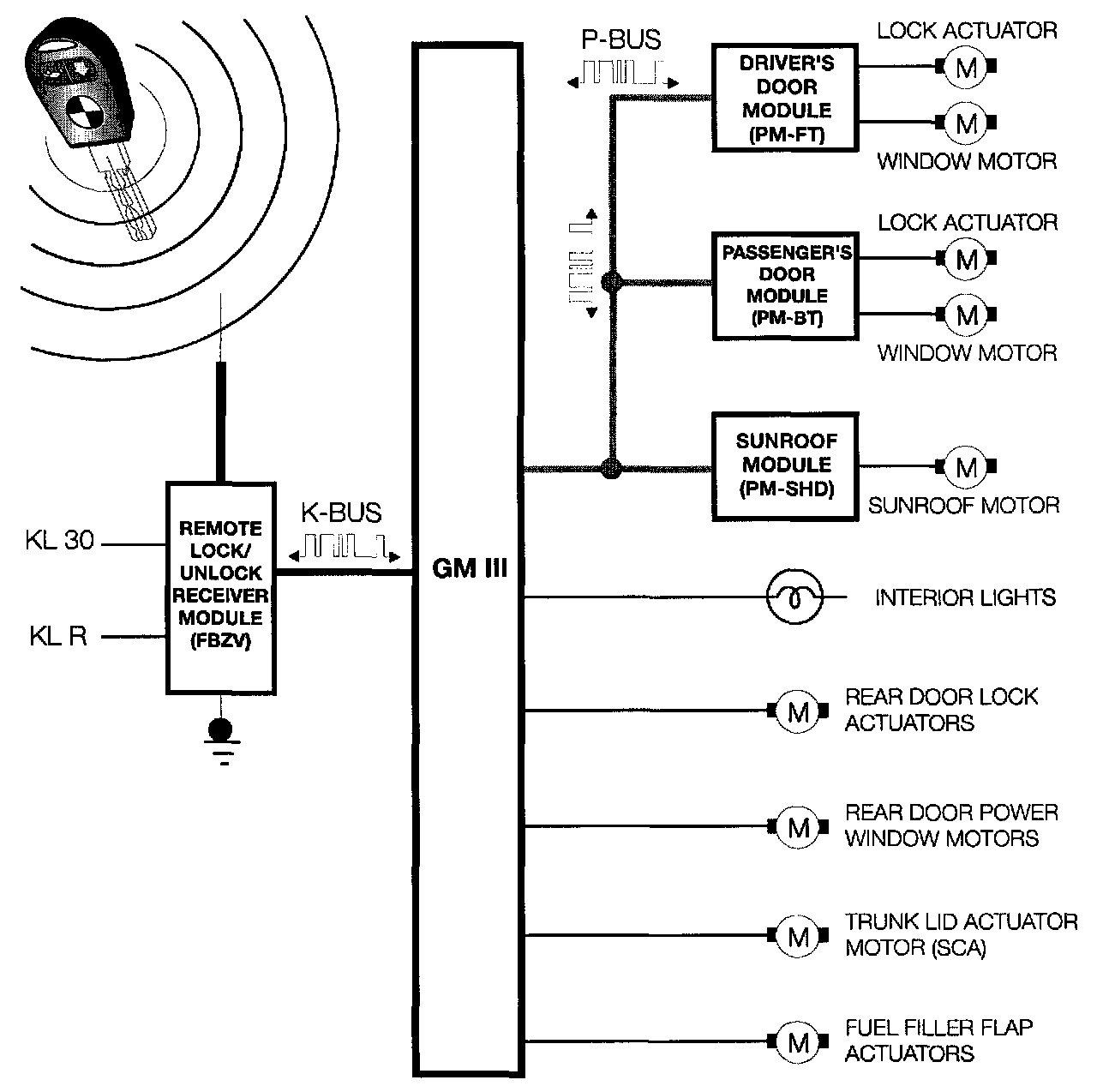

The remote entry control module (FBZV) is connected to the K-Bus. All commands from the transmitters are received by the control module and sent over the K-Bus to the GM III.

All locking/unlocking, window/sunroof and DWA operations are carried out through the GM III, door and sunroof modules.
