Halogen Bulb, Replacement

Remove Foglight.

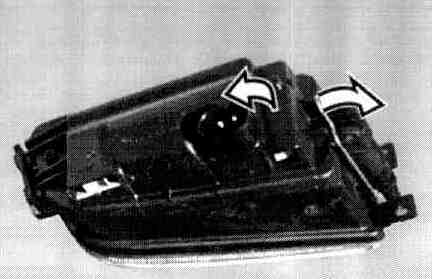

Open retaining bracket and fold up cover.





Unfasten connector, unclip bracket and lift out light bulb

Caution!
Do not take hold of glass part of bulb with bare fingers. Only take hold of bulb on base or with a clean cloth or packaging of light bulb.
