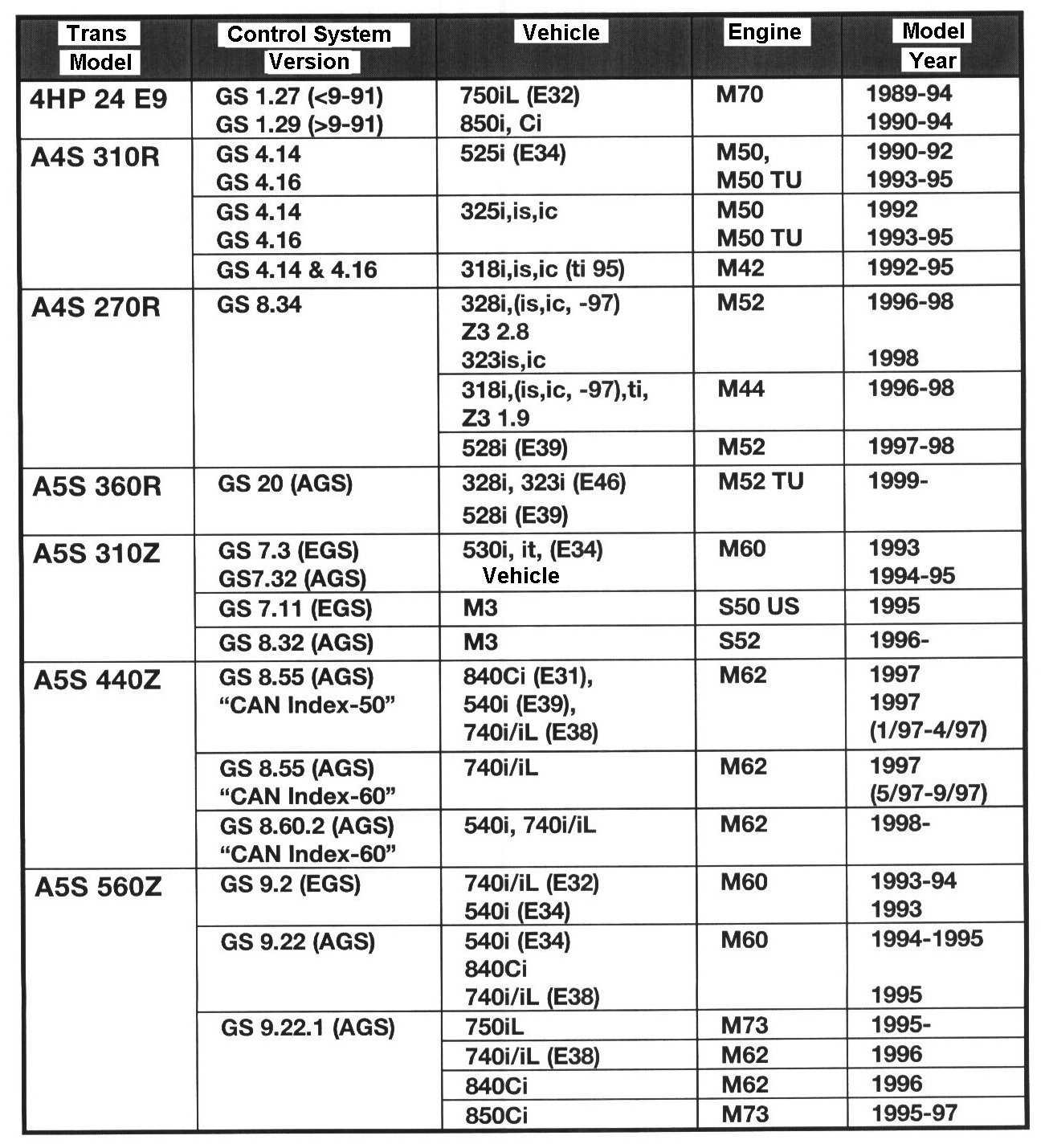

Identification Chart

Transmission Control System Version Identification By Model







Automatic Transmissions and control system technology has evolved through the model years. The evolution is due to continued refinement and total vehicle system communication integration. Same version transmission control systems in many cases are different from vehicle to vehicle increasing the total number of system variations.
