Sample Wiring Schematic

Sample wiring schematic

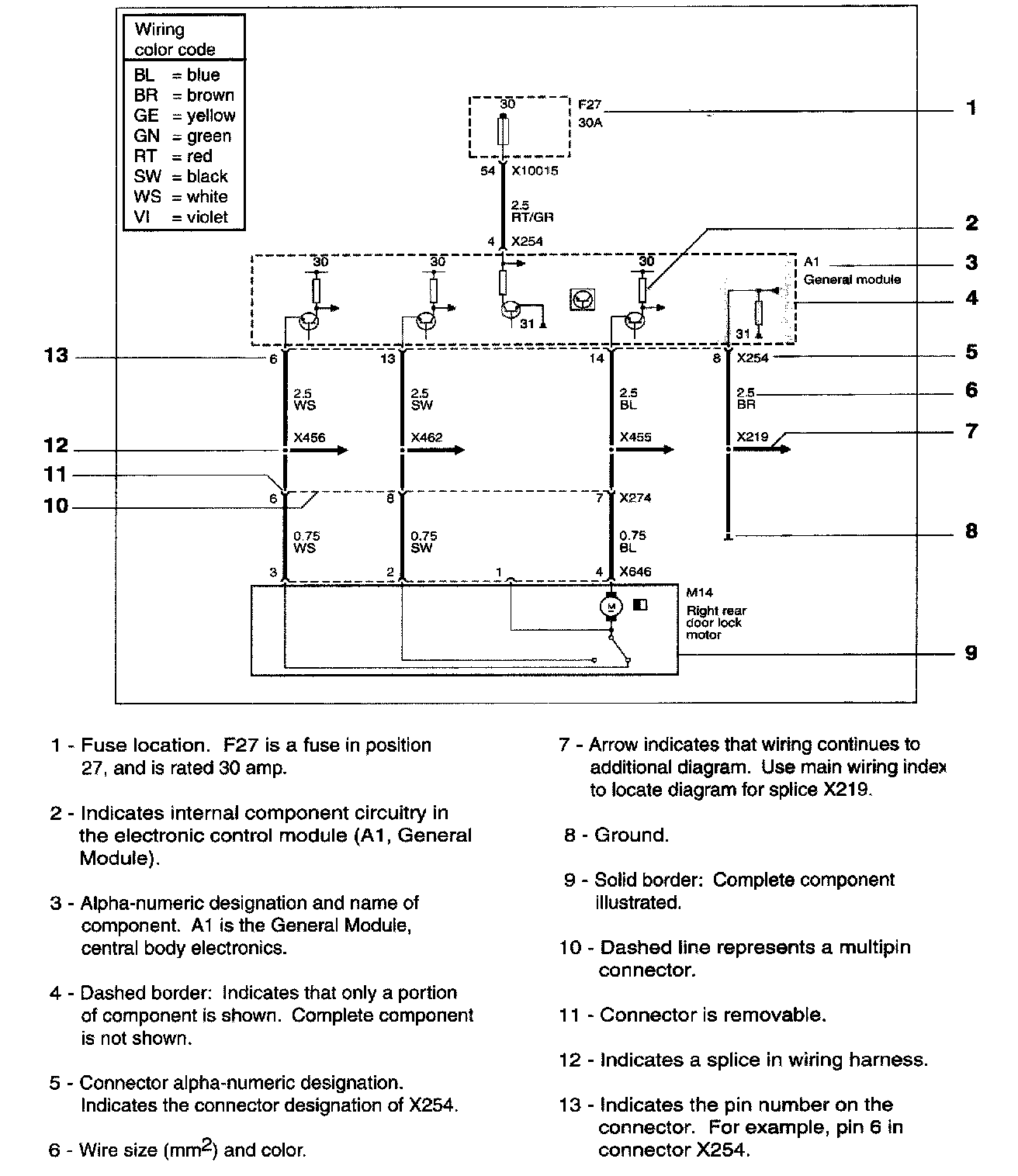

A sample wiring diagram is shown below. It identifies many of the elements found in the diagrams within this section. Note that a dashed line indicates that only a partial view is given and more information on that component or circuit can be found elsewhere in the schematics.
