Evening Out Cylinder Head Sealing Surface

Evening Out Cylinder Head Sealing Surface
(Cylinder Head Dismantled)

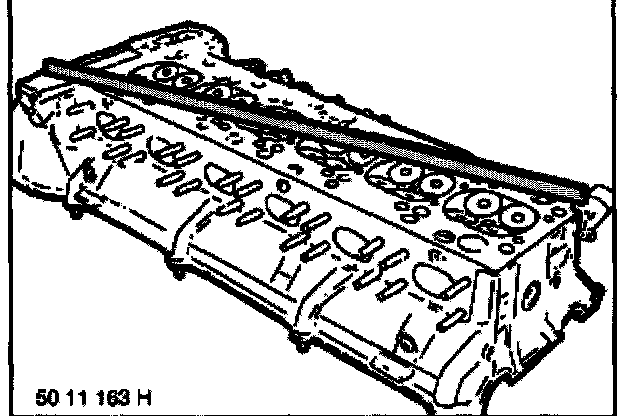

Check evenness of cylinder-head sealing surface with straight edge (commercially available).

Deviation from level max. 0.05 mm.





Note: Machining limit, refer to Specifications, Mechanical.

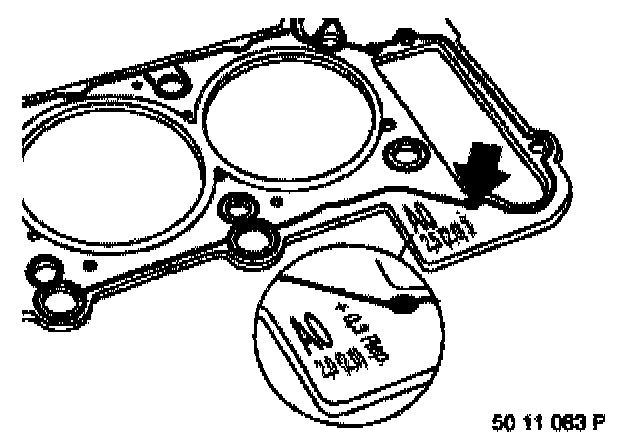

Note: For compression comparison check, a repair cylinder head seal is provided.
