Compact Models

Replacing Rear Muffler

Warning: Scalding hazard!

These tasks should only be carried out on an exhaust system that has cooled down!





Determining cutting point:
Carry over length of new rear muffler (X) to faulty rear muffler.
Mark out cutting point.

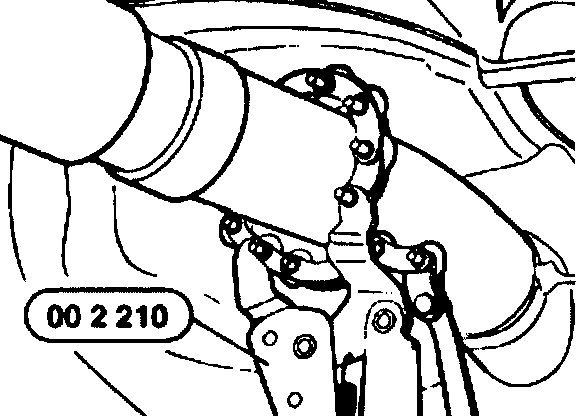

Cut exhaust pipes with special tool 00 2 210 at marked points and deburr.
Remove faulty rear muffler.





Installation:

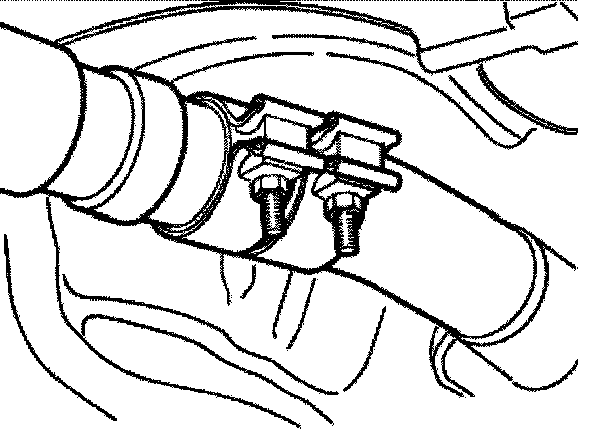

Connect new rear muffler and center muffler by means of clamping sleeves
Cutting point is in middle of clamping sleeve.
Align exhaust system and clamping sleeves in such a way that there is sufficient spacing to adjoining components.





Installation:

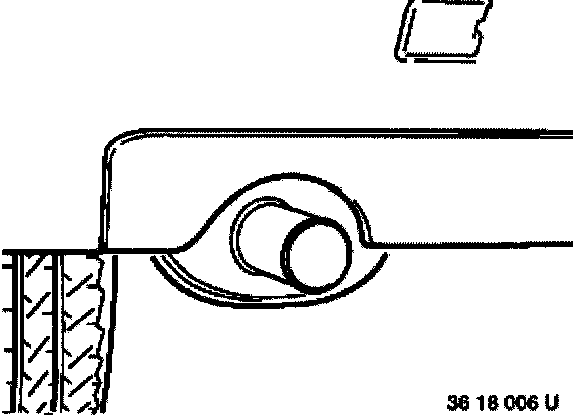

Check position of end pipes to body cutout.
Tighten down screws of clamping sleeves.
