Instrument Cluster / Carrier: Service and Repair

Removing And Installing (Replacing) Instrument Cluster


NOTE: Extend steering column completely and set in downward position.







Release screw (1).

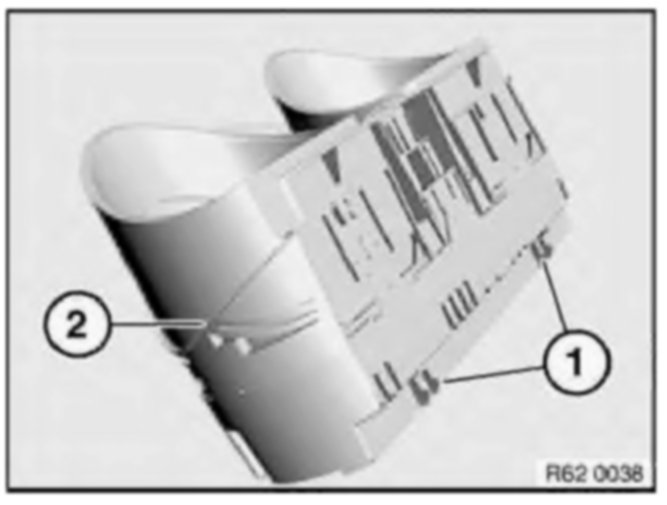

Fold back instrument cluster (2) in direction of arrow and pull out towards rear.
Unlock associated plug connection and disconnect.
Remove instrument cluster (2).







Installation:
Retaining lugs (1) of instrument cluster (2) must be exactly seated in mountings of instrument panel.







Replacement:
Carry out coding/programming.

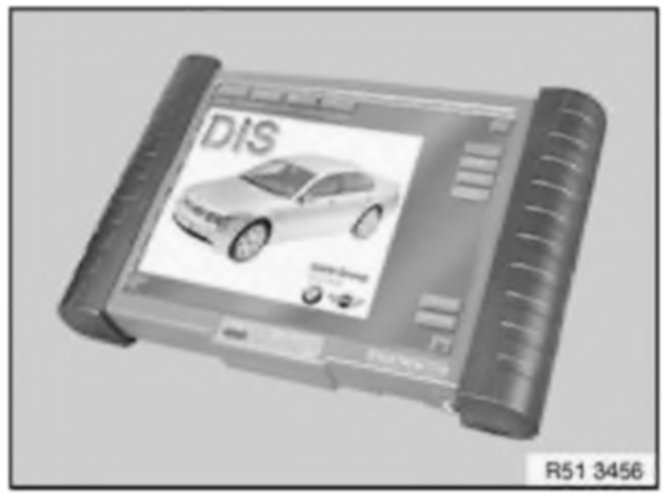

Observe following IDC specifications:
- Programming
- Coding
- If necessary, car & key memory
- CD "CIP"
