Air Cleaner Housing: Service and Repair

13 71 000 Removing and installing intake filter housing (M54)

Necessary preliminary tasks:
- Switch off ignition.
- Remove top section of intake filter.

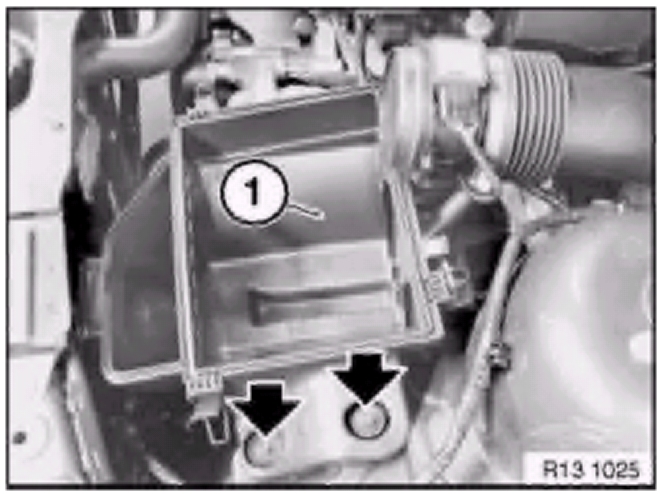

Unfasten screws.
Remove intake filter housing (1).

Installation:

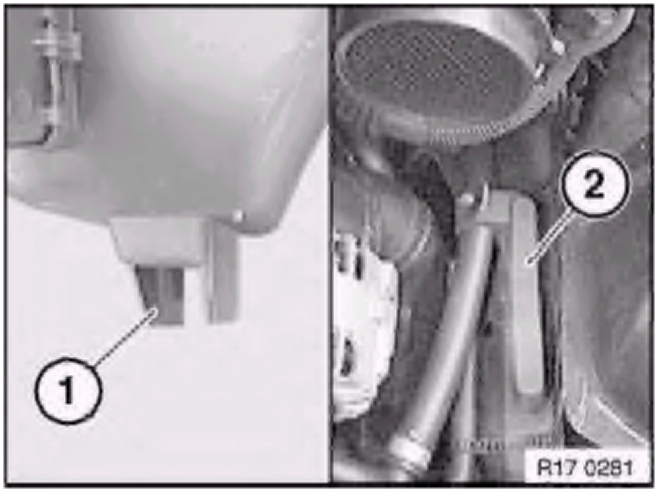

Install guide rail (1) on intake filter housing on rubber mount (2).
