Removing and Installing/ Replacing Front Right Sensor

Removing and Installing/ Replacing Front Right Sensor


Necessary Preliminary Tasks:
- Remove fluid reservoir for windscreen washer system, Service and Repair.
- Remove radiator cover, Service and Repair.

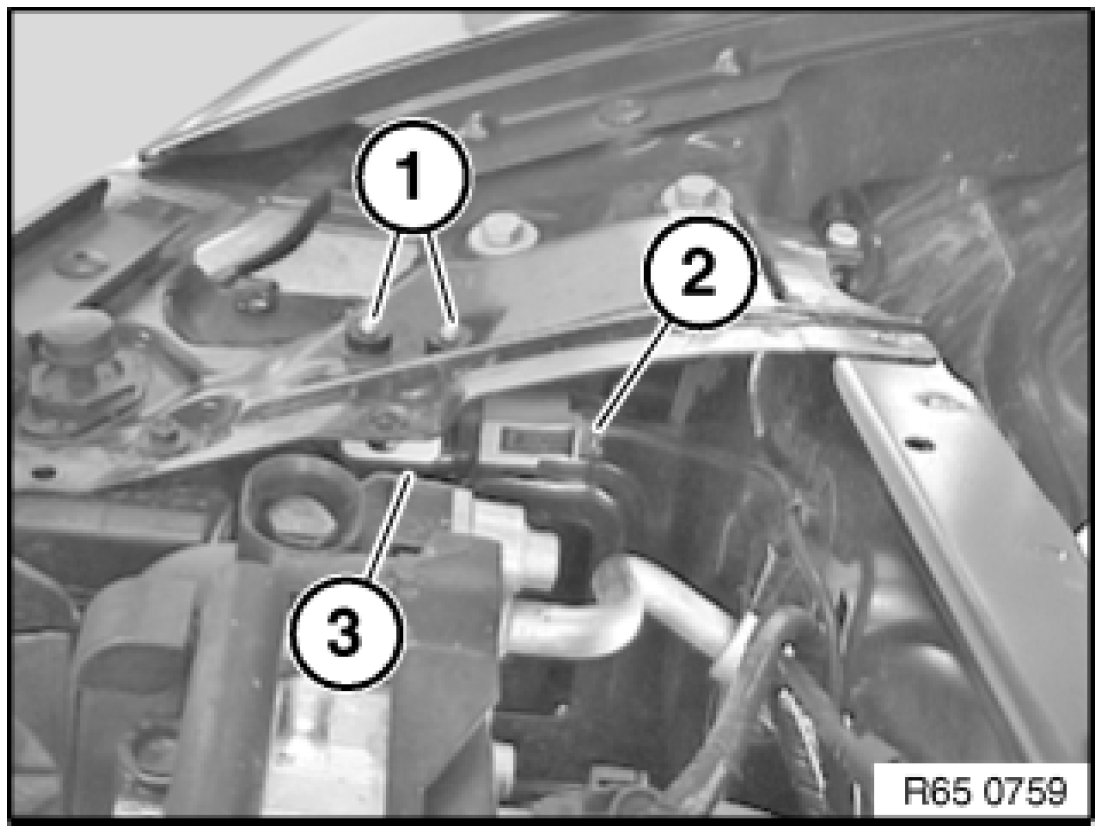

Release screws (1), tightening torque 65 77 3AZ.

Unlock and disconnect plug connection (2) and remove front right sensor (3).
