Airbag Triggering Circuits (As of 09/04)

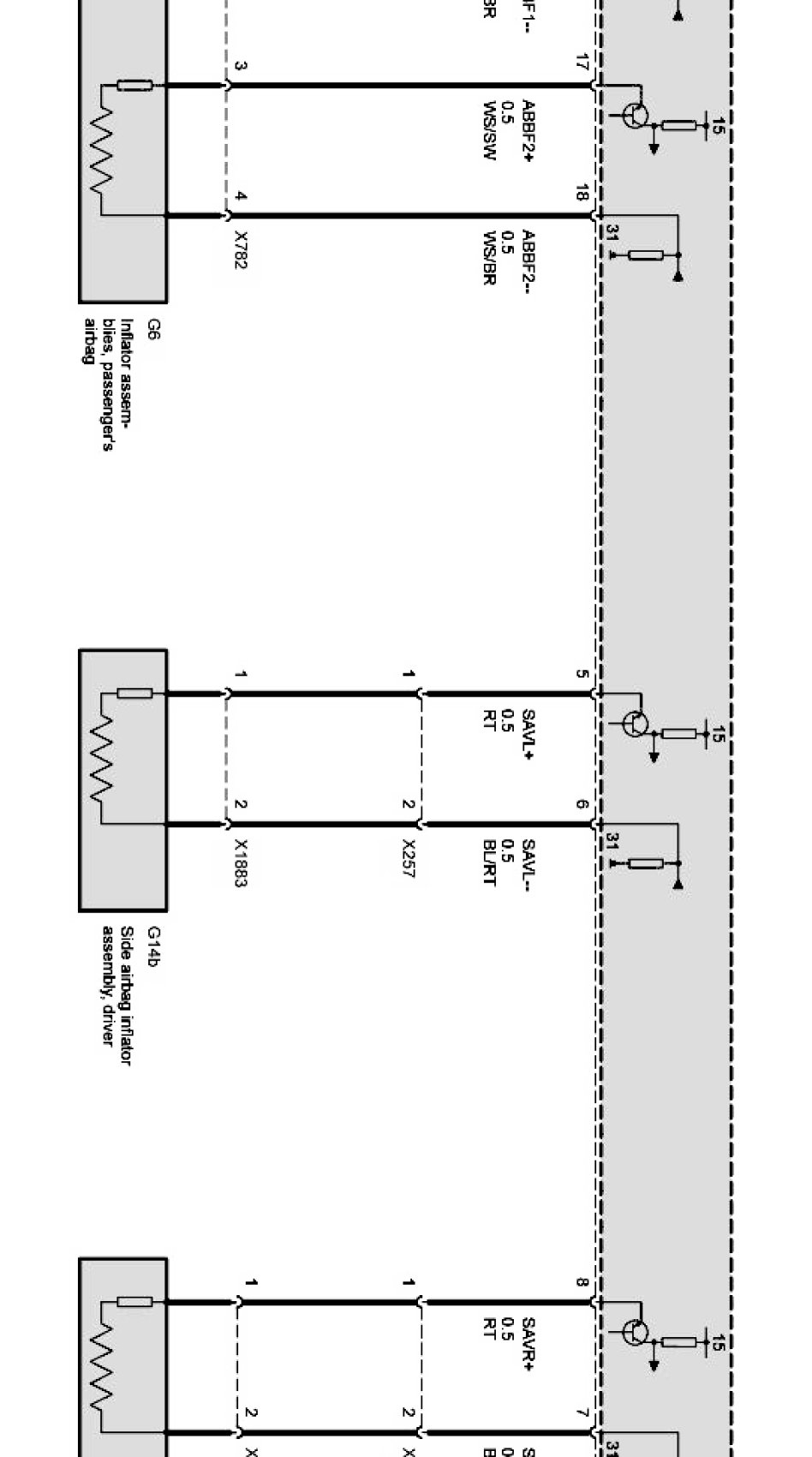

Airbag triggering circuits Part 1:



Airbag triggering circuits Part 2:



Airbag triggering circuits Part 3:



Airbag triggering circuits Part 4:



Airbag triggering circuits Part 5:



Airbag triggering circuits Part 6:



Airbag triggering circuits Part 7:
