Removing and Installing or Replacing Trim on Left or Right Door Pillar (Top)

51 43 148 Removing And Installing Or Replacing Trim On Left Or Right Door Pillar (Top)

Necessary preliminary tasks:
- Remove panel for door pillar (bottom)

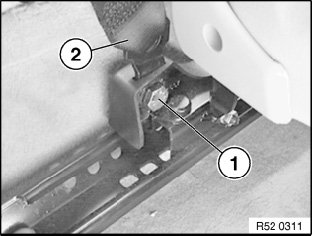

Release seatbelt screw (1) on front seat and feed out seatbelt strap (2).
Tightening torque 72 11 1AZ.
1AZ
Seat belt, Automatic reel, Lower strap, Anchor fitting, Belt tensioner to body 31 Nm
1AZ
Seat belt on B-pillar 31 Nm
1AZ
Seat belt / belt tensioner to seat, on Touring also to rear seat backrest 48 N

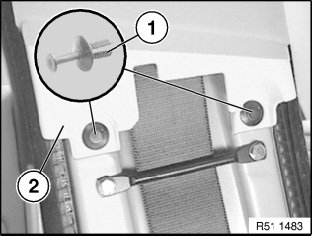

Release expansion rivets (1) on panel (2).







Pull off panel (1) towards bottom.
Feed out seatbelt strap (2).







Installation:

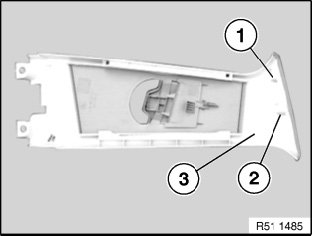

Locator (1) and guide (2) on trim (3) must not be damaged.
