Antitheft Alarm System

Antitheft Alarm System





The alarm system detects and warns of any attempts to break in or tamper with the vehicle.

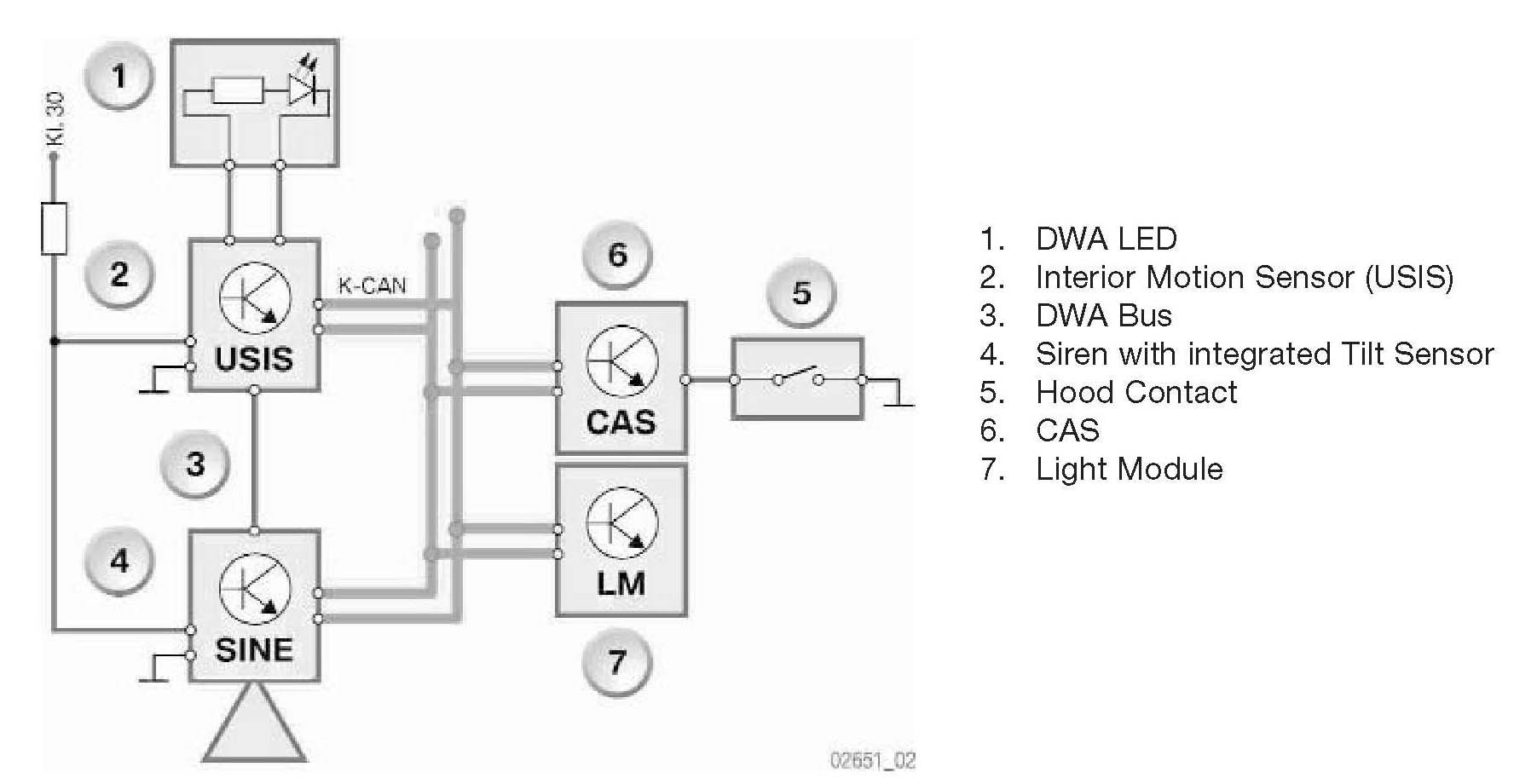

The DWA comprises the following components:
^ Interior sensor with integrated DWA logic
^ Emergency siren with integrated tilt sensor
^ DWA LED
^ Door, Trunk and Hood Switches (fed via K-CAN)
^ Car Access System (CAS)
^ Light module (LM)
^ K-CAN
^ Local DWA bus line leading to emergency siren.
