65 13 090 Removing and Installing/Replacing Speaker (Mid-Range Speaker, Rear Side Trim Panel)

65 13 090 - Removing and installing/replacing speaker (mid-range speaker, rear side trim panel)





Necessary preliminary tasks:
- Remove rear side trim panel Removing and Installing/Replacing Rear Left or Right Lower Side Trim Section

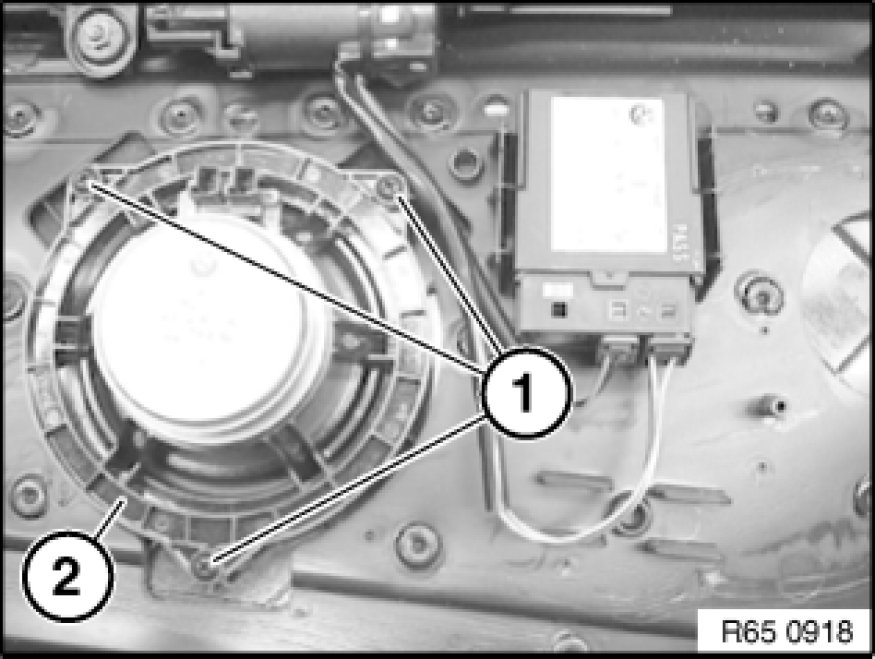

Release screws (1).
Remove speaker (2) upwards from side trim panel.
Tightening torque 65 13 1AZ Specifications.
