Grille: Service and Repair

51 13 001 - Removing and installing/replacing front radiator grille, middle left or right





Release screws (1) and pull bumper trim (3) forwards slightly.
Release catches (4) from inside and remove central radiator grille (2) towards front.






Installation:
All catches and guides on middle front grille must not be damaged.

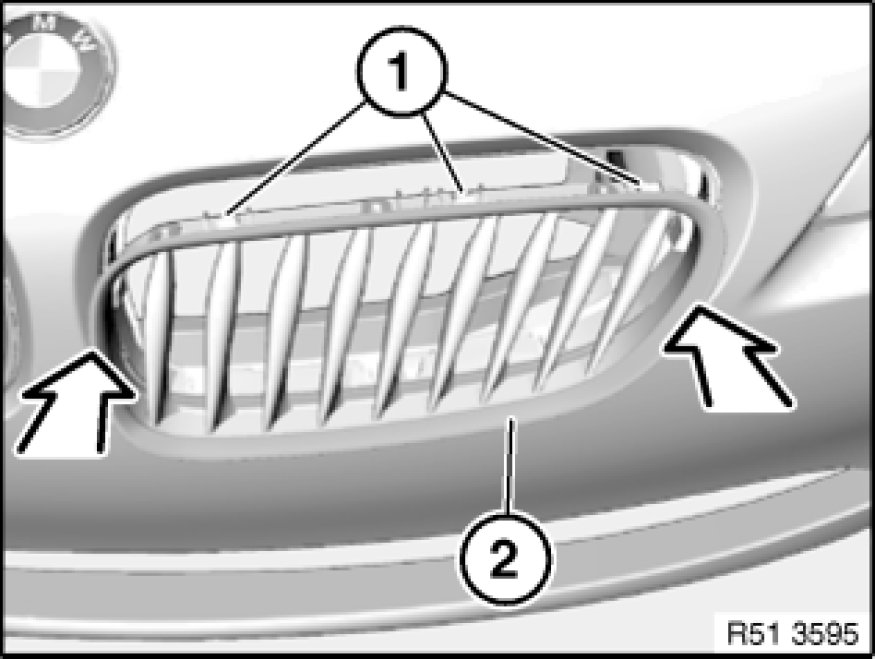

Press on chrome ring to push front radiator grille (2) into bumper trim.
Fixtures (1) must engage correctly.





Replacement:

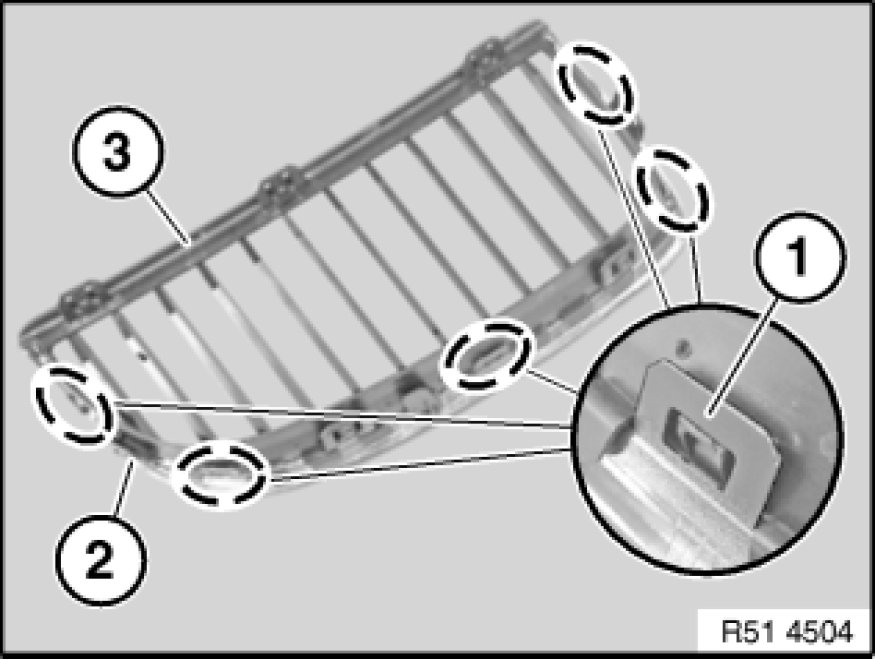

Release catches (1).
Remove chrome frame (2) from radiator grille (3).

Installation:
Catches (1) on chrome frame (2) and radiator grille (3) must not be damaged.
