51 45 185 Removing and Installing/Replacing Panel For Pedals

51 45 185 - Removing and installing/replacing panel for pedals

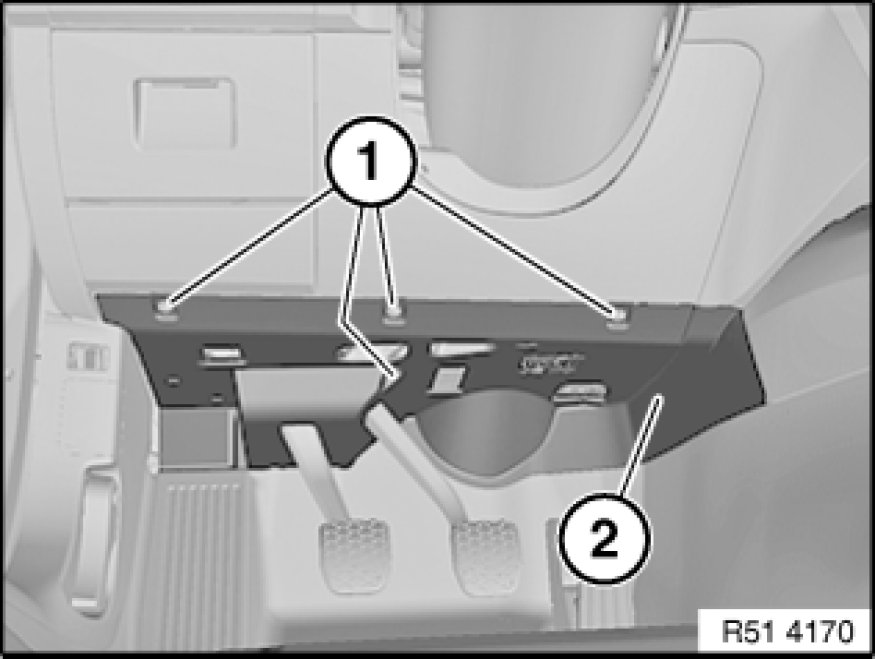

Release screws (1).
Pull back trim for pedal assembly (2).
Disconnect associated plug connections and remove trim for pedal assembly (2).

Important!
Disconnecting the plug connection for the hands-free system speaker results in fault memory entries in the telephone control unit (limitation in the emergency SOS call system).
After fitting, read out fault memory and if necessary delete entries.

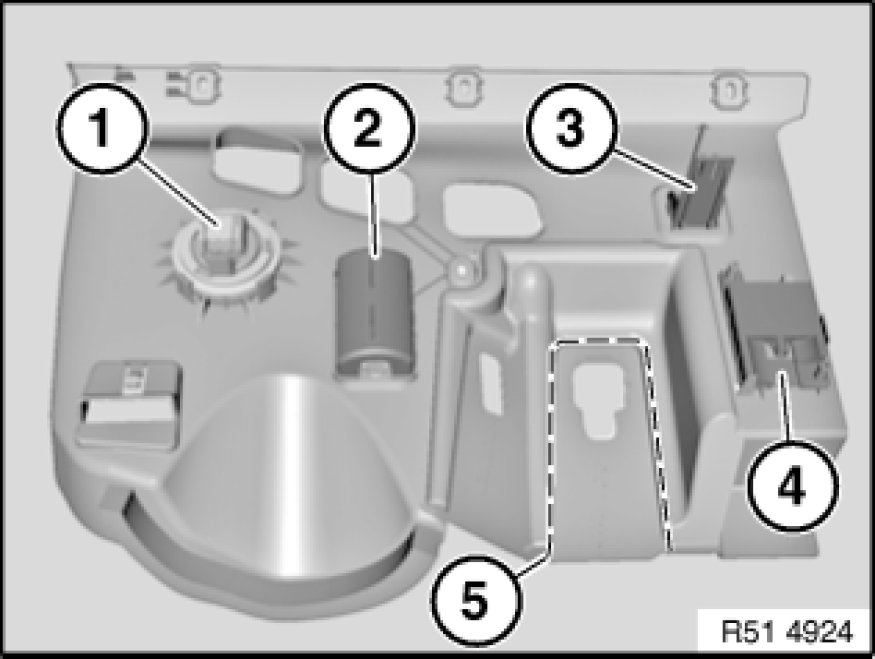

Replacement (depending on Security version):
(1) - Modify speaker 66 20 565 Removing and Installing/Replacing Front Signal Sensor (Park Distance Control) (Park Distance Control)
(2) - Modify footwell light Removing and Installing/Replacing Footwell Light (Footwell)
(3) - Modify MOST direct access bracket
(4) - Modify Bluetooth aerial 84 50 060 Removing and Installing/Replacing Bluetooth Aerial
(5) - Cut out opening for clutch pedal





Replacement on right-hand drive up to model year 2005:

Note:
It is necessary to rework the side trim panel because of modified locators on the side trim panel and the panel for the pedal assembly from model year 2005.

Remove side trim panel (driver's side) Removing and Installing/Replacing Side Trim Panel, Footwell, on A-pillar, Left.

Cut off the first three upper ribs (1) on side trim panel (2) flat with a scalpel to contact face (3).
