Hard Top: Testing and Inspection

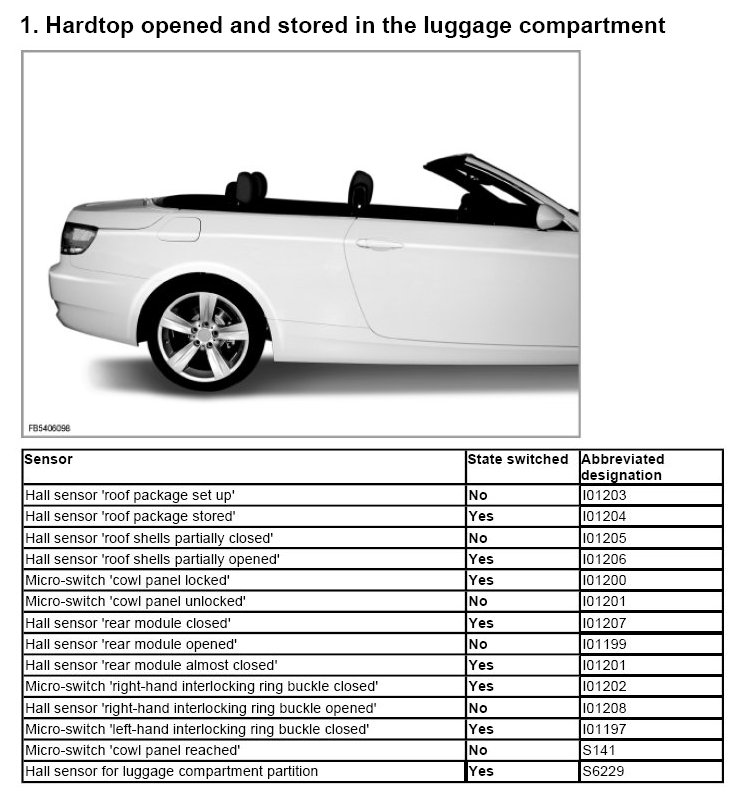

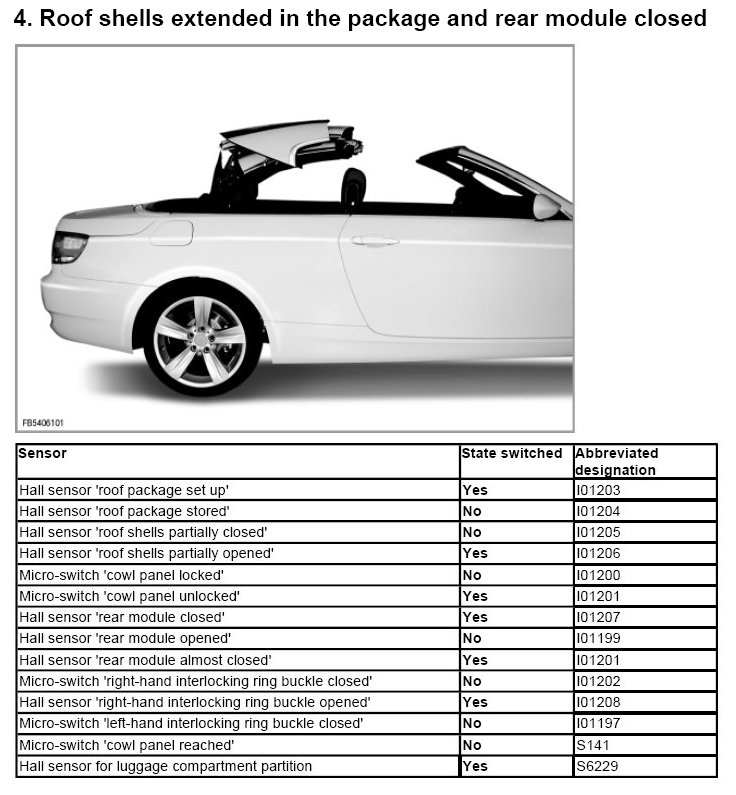

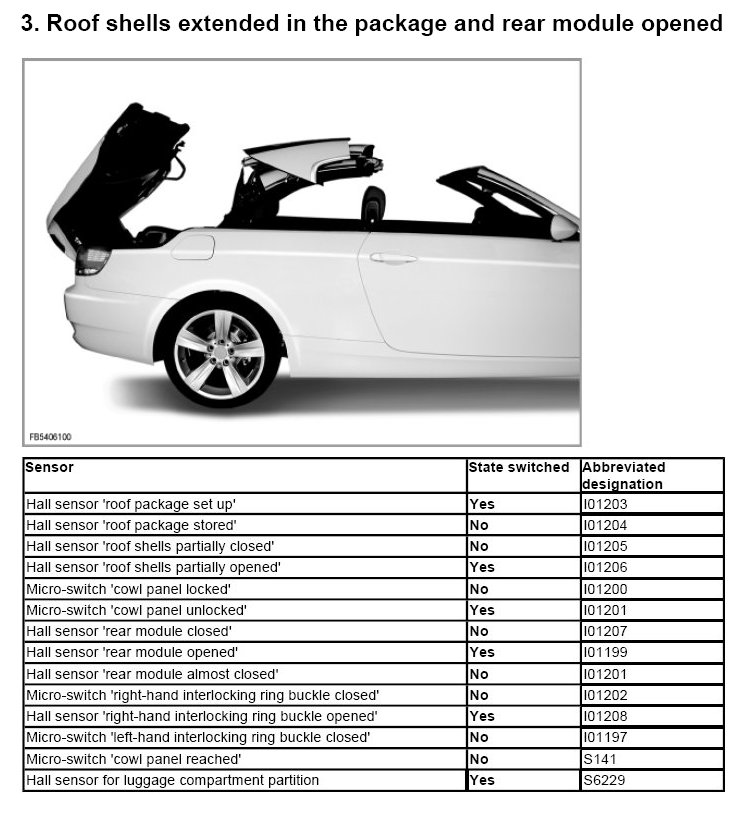

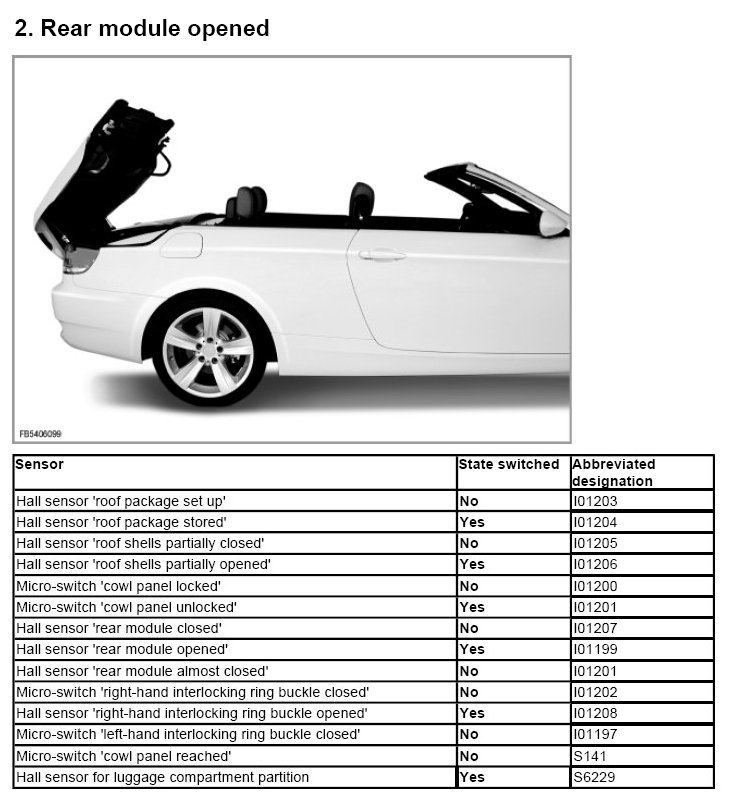

Positions Of The Hardtop

There are a total of 14 sensors for the retractable hardtop (9 Hall sensors and 5 micro-switches). These sensors detect the different positions on closing and/or opening the hardtop. To pinpoint faults, it must be known in which intermediate position the hardtop comes to a standstill. This can be used to conclude what the fault is.
