Removing and Installing/Replacing Left or Right Rear Seat

52 24 000 - Removing and installing/replacing left or right rear seat

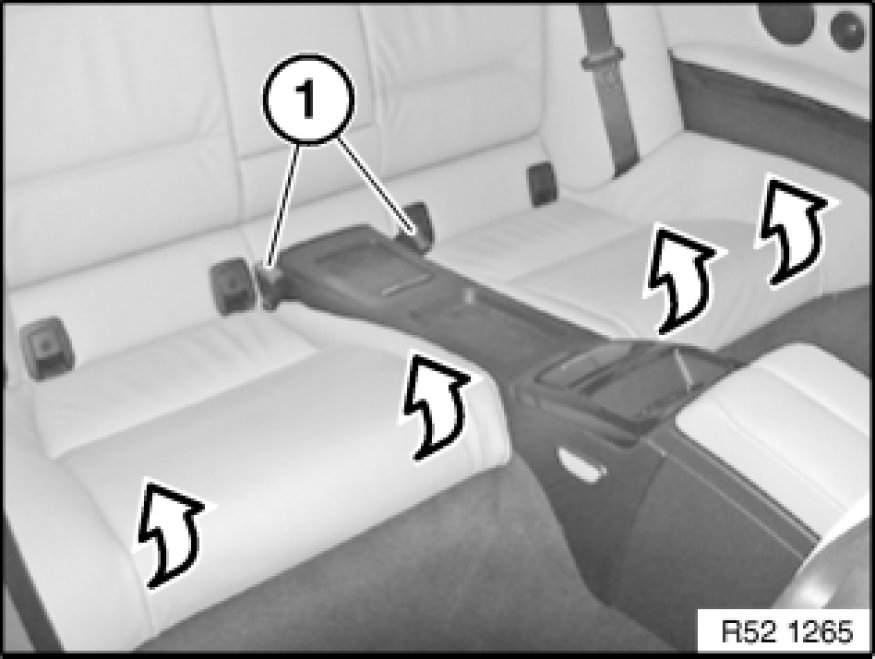

Unclip left or right rear seat towards top.
Raise rear seat approx. 30 cm and remove towards front.

Installation:
Feed seat belt buckles (1) into openings in rear seat.





Installation:
Insert pin on rear seat (1) correctly into opening in rest side section (2).
Pin must not be damaged.
