64 51 ... Leak-Testing Evaporator

64 51 ... Leak-testing Evaporator

Special tools required:







WARNING:
It is essential, when handling nitrogen, to observe the standard national safety regulations.
Ensure that employees are advised of how to handle pressurized vessels and nitrogen correctly (danger of asphyxiation). For this purpose, follow the notes and instructions in the technical safety specifications available from the gas supplier.







Necessary preliminary tasks:
- Remove expansion valve

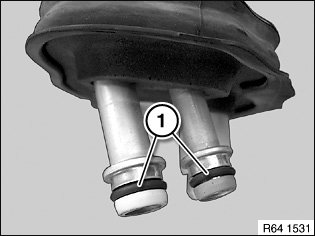

Replace sealing rings (1) and coat with refrigerant oil

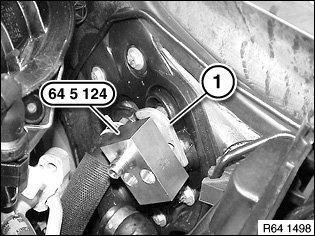

Screw special tool 64 5 124 together with retaining clip (1).
Tightening torque 64 53 13AZ.







Connect special tool 64 5 124 to special tool 64 5 121.







IMPORTANT:
Risk of damage: Use only nitrogen pressure bottles with pressure reducers for leak-testing.
Pressurize evaporator to 10 bar slowly only. Excessively fast pressurization and pressures in excess of 20 bar may cause damage to the evaporator.







Connect pressurised nitrogen cylinder with pressure reducing valve to pressure gauge and then connect to special tool 64 5 121 (connecting hose).

NOTE:
- Testing apparatus must be leakproof.
- Ambient temperature and temperature of vehicle must not change during the test procedure.
- Do not move the vehicle during this period

Apply test pressure of 10 bar slowly and close nitrogen pressure bottle.

Check leak-tightness of testing apparatus and of connection to refrigerant line.

Set test pressure of 10 bar is only permitted to drop by 2 bar to 8.5 bar over a test period of 1.5 hours.

If the pressure loss is greater than 1.5 bar, this indicates that there is a leak in the evaporator unit.







WARNING: After leak-testing, unscrew special tool 64 5 121 slowly from special tool 64 5 124 to release pressure.







After leak-testing:
- Replace sealing rings. Use special tool 00 9 030 to mount sealing rings without damaging them.
- Assemble A/C system
- Evacuate and fill A/C system

��:
