Removing and Installing/Replacing Left Fanfare Horn

61 33 050 - Removing and installing/replacing left fanfare horn





Necessary preliminary tasks:
- Remove front left wheel arch trim 51 71 038 Removing and Installing/Replacing Front Left or Right Wheel Arch Cover (Front Section)

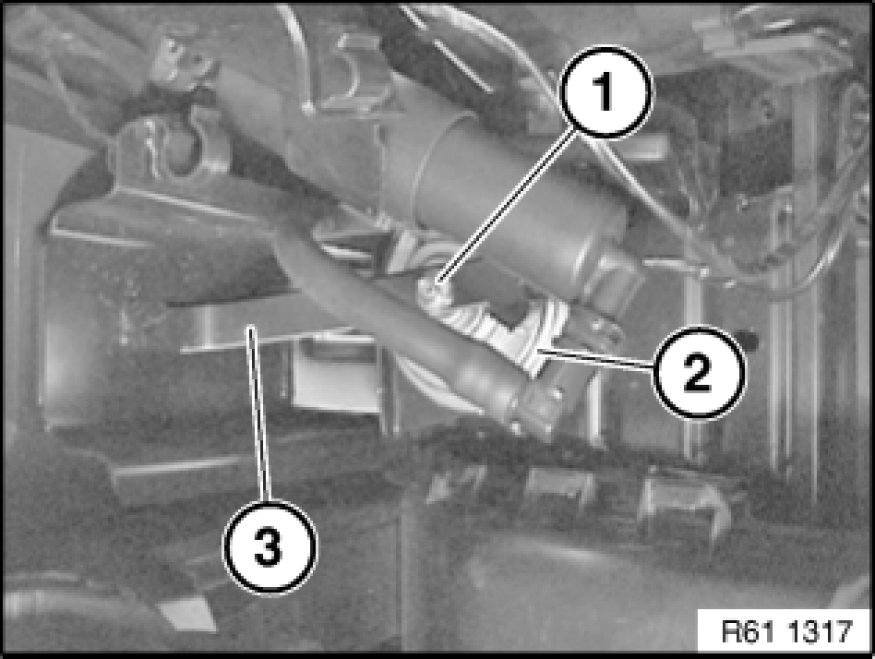

Slacken nut (1). Tightening torque 61 33 1AZ Specifications.
Remove fanfare horn (2) from holder (3).
Disconnect associated plug connection.
