Removing and Installing/Replacing Left or Right Rear Light (In Side Panel)

63 21 180 - Removing and installing/replacing left or right rear light (in side panel)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).

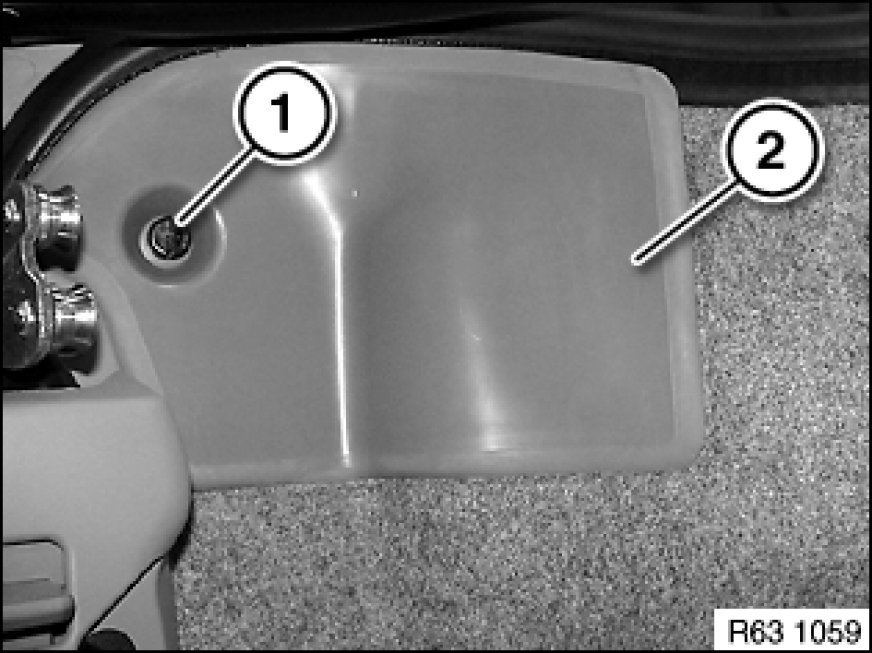

Release rotary clip (1) and remove cover (2).

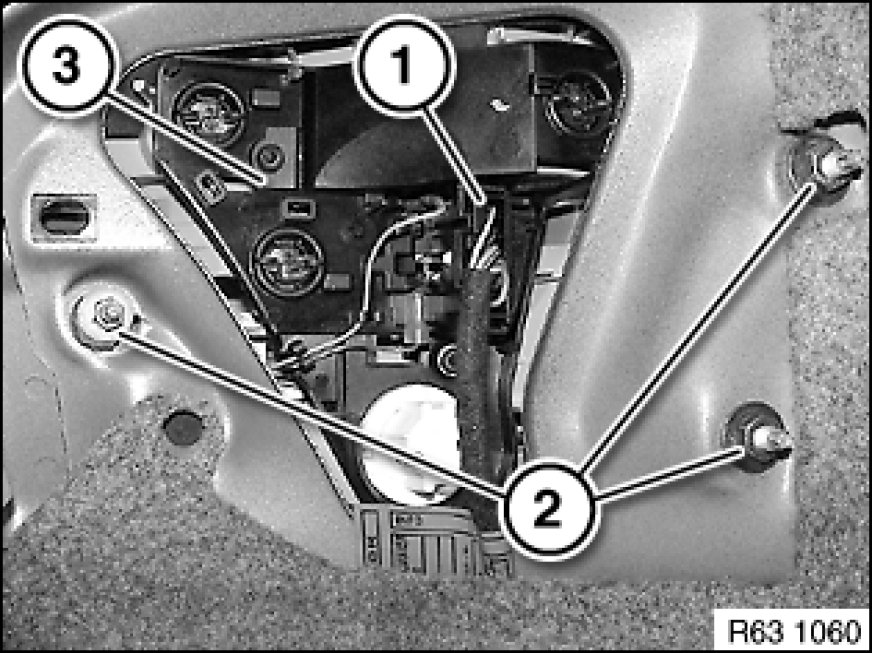

Disconnect plug connection (1).
Unscrew nuts (2). Tightening torque 63 21 1AZ Specifications.
Remove rear light (3) in outwards direction from side panel.

Installation Note:
Make sure gap is uniform all round between rear light (3) and side panel.
Observe tightening sequence, first inside then outside.





Replacement:
If necessary, remove bulbs Service and Repair.
