11 65 024 Removing and Installing/Replace Exhaust Turbocharger For Cylinders 4-6

11 65 024 Removing and installing/replace exhaust turbocharger for cylinders 4-6 (N54, N54T)





Necessary preliminary work:
^ Remove both catalytic converters
^ Remove charge air cooler
^ Drain coolant
^ Remove coolant expansion tank
^ Remove both vacuum reservoirs
^ Remove right charge-air duct
^ Remove right engine support arm

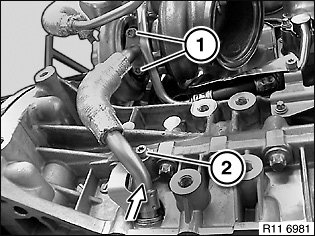

Release screws (1).

Tightening torque 11 42 7AZ.

Installation note:
Replace gasket.

Release screw (2).

Tightening torque 11 42 8AZ.

Remove oil return pipe in direction of arrow.

Installation note:
Replace O-ring.





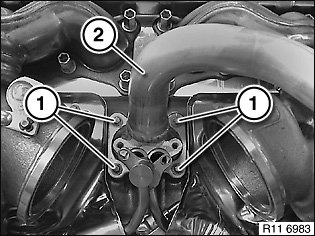

Release screws (1 and 2).

Tightening torque 11 53 10AZ.

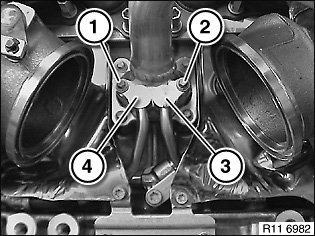

Release coolant feed lines (3 and 4) if necessary with suitable pliers.

Important!
Do not place pliers on pipes. Risk of damage!

Installation note:
Replace O-rings.





Release screws (1).

Tightening torque 11 53 3AZ.

Remove feed line (2).

Installation note:
Replace O-ring.





Release screw (1).

Tightening torque 11 53 9AZ.

Release coolant return pipe if necessary with suitable pliers.

Important!
Do not place pliers on pipes. Risk of damage!

Installation note:
Replace O-ring.





Release screw (1).

Tightening torque 11 53 8AZ.

Important!
When detach coolant feed pipe (3), pay attention to linkage of vacuum unit (wastegate valve).
Risk of damage!

Release coolant feed pipe (3) if necessary with suitable pliers.

Release coolant return pipe (2) if necessary with suitable pliers and remove.

Important!
Do not place pliers on pipes. Risk of damage!

Installation note:
Replace O-ring.

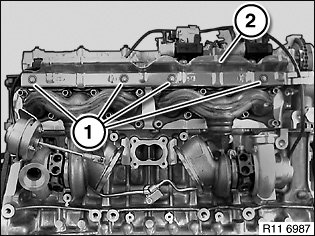

Release screws (1).

Tightening torque 11 65 2AZ.

Remove retaining plate (2).

Unfasten screws (3 and 4).

Tightening torque 11 65 2AZ.

Important!

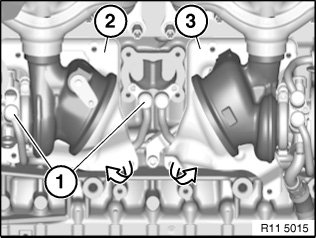

Carefully swing out heat shields (2 and 3) in direction of arrow.





Risk of damage!

Remove heat shield (3) in direction of arrow.

Remove heat shield (2) in direction of arrow.

Note:
Coolant feed pipe (1) can be removed with heat shield (2).

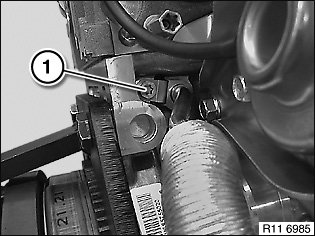

Release screw (1).

Tightening torque 11 42 4AZ.

Detach oil feed line in direction of arrow.

Installation note:
Replace O-ring.





Release screws (1).

Tightening torque 11 65 3AZ.

Set holder (2) down on cylinder head cover.

Detach vacuum hose from vacuum unit (wastegate valve).

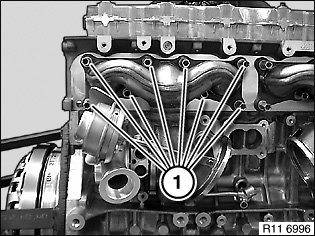

Unscrew nuts (1).

Remove turbocharger towards bottom.

Tightening torque 11 65 1AZ.

Important!
Do not misuse linkage of vacuum unit (wastegate valve) for transportation.
Risk of damage!





Release screw (2).

Tightening torque 11 42 5AZ.

Important!
Where necessary, to release the oil feed line (3), do not place pliers on the pipe.
Risk of damage!

If necessary, release oil feed line (3) with suitable pliers at connection and remove.

Installation note:
Replace O-rings.

Installation note:
Replace graphite sealing rings (1).

Assemble engine.

Clear fault memory in DME control unit.

Check air intake system for leaks.

Observe DME instructions.
