Removing and Installing/Replacing Trim For Release Handle on Left or Right Front Seat (Normal/Manual)

52 13 ... - Removing and installing/replacing trim for release handle on left or right front seat (normal/manual)

Remove release handle on left or right front seat,
refer to 52 14 033 Removing and Installing/Replacing Release Handle on Left or Right Front Seat (Normal/Electric).

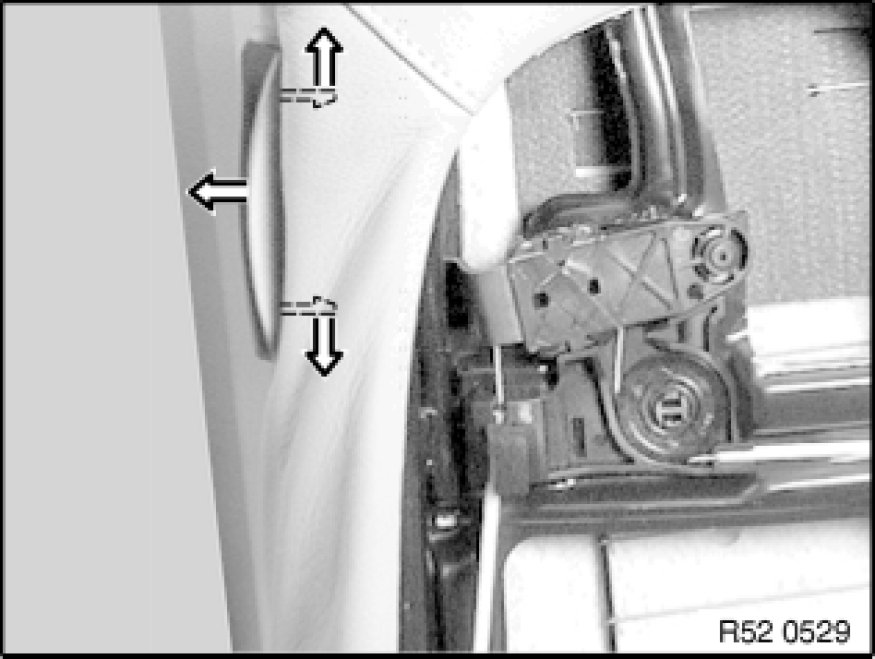

Unlock catches from outside by applying light pressure through trim slot and remove trim from side.

Note:
On both sides on passenger seat.





Installation:
Catches (1) on trim must not be damaged.
