Removing and Installing/Replacing Rear Panel on Front Left or Right Seat Backrest (Sports/Manual)

52 15 198 - Removing and installing/replacing rear panel on front left or right seat backrest (sports/manual)





Lever out clips (1).

Installation:
Replace faulty clips.





Lever out rear panel (1) at bottom towards rear.
Pull rear panel (1) downwards off backrest frame (2).





Installation:

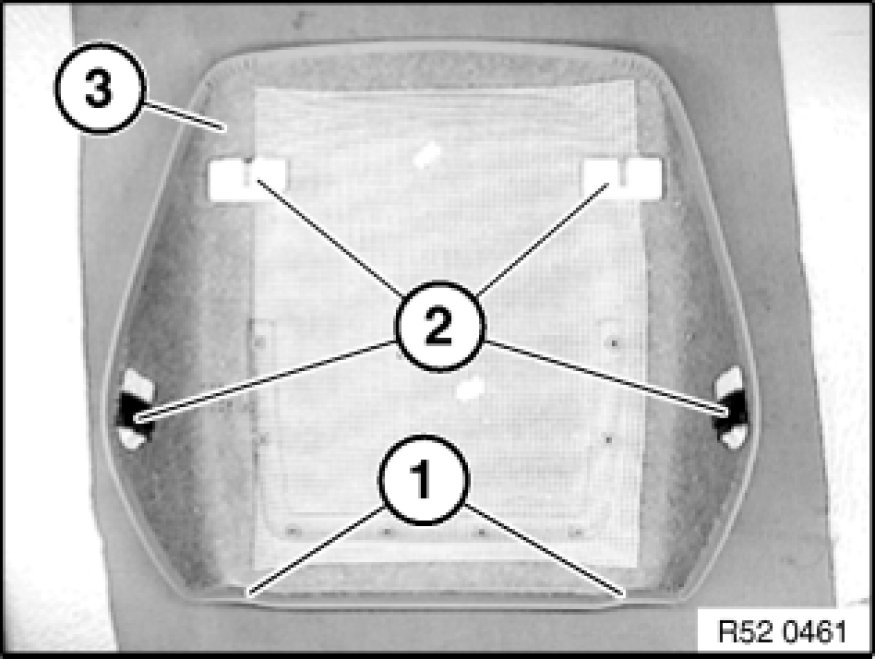

Bores (1) and fastening set (2) on rear panel (3) must not be damaged.





Installation:
Slide backrest cover (1) on left/right over clip mount (2).





Installation:
Mounts (1) on backrest frame (2) must not be damaged.
To install rear panel, first slide into mounts (1) and then slide in at sides at bottom.





Installation:
Feed rear panel at sides into opening in backrest cover.
Insert rear panel into mounts (1) on left/right of backrest frame (2) and snap into place.
