Connectors From X1
>>
X10266
>>
A18 Amplifier (X Series With Top Hifi System E83 (10-Speaker))
A18 Amplifier (X Series With Top Hifi System E83 (10-Speaker))
X10266:

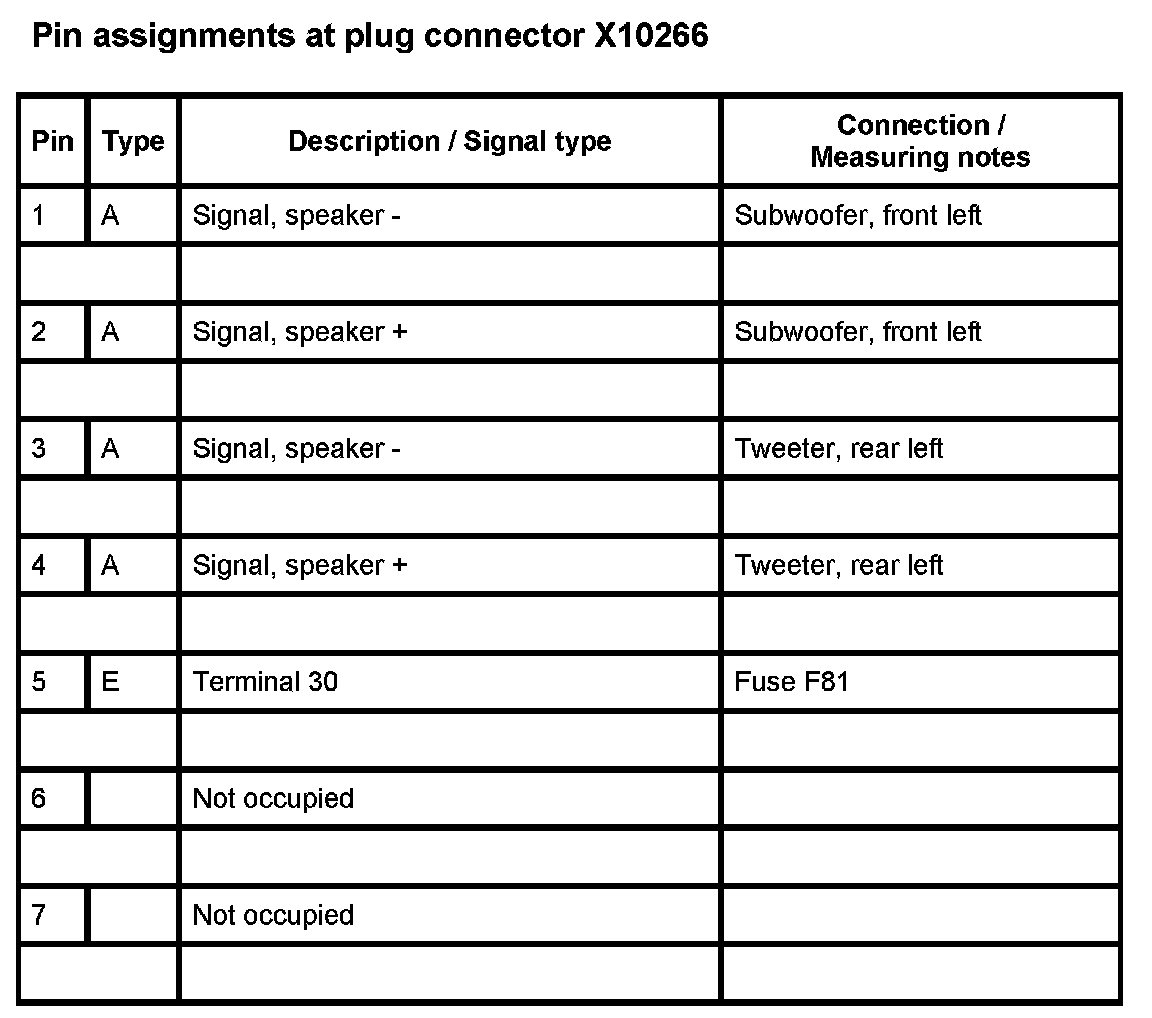

X10266 - Part 1:
X10266 - Part 2:
X10266 - Part 3:
X10266 - Part 4:
