Removing and Installing/Replacing Left or Right Central Bass Speaker (Under Front Seat)

65 12 050 - Removing and installing/replacing left or right central bass speaker (under front seat)





Necessary preliminary tasks:
- Remove front seat.
- Remove panel for door pillar Removing and Installing/Replacing Trim for Left or Right Door Pillar (Bottom).

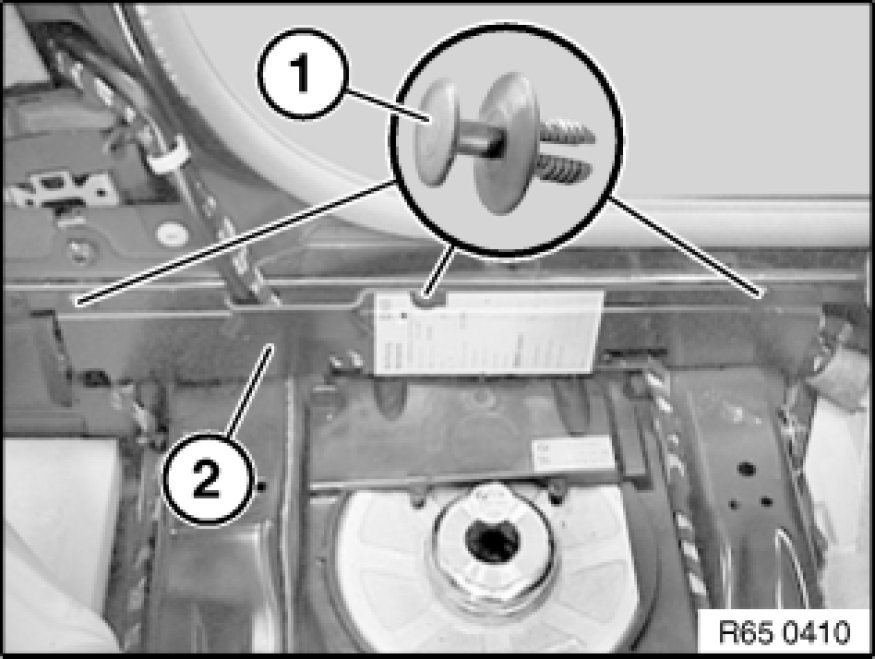

Release screws (1).
Remove central bass speaker trim (2).
Fold back floor trims.





Remove clips (1).
Remove cable cover (2).





Remove clip (1).
Raise rear compartment heating duct (2) slightly in order to remove bass speaker.





Note:
Rear compartment heating duct shown removed for purposes of clarity.

Unfasten plug connection (1) and disconnect.

Release nuts (2) and screws (3).
Feed out central bass speaker (4) in direction of arrow and remove.
