Removing and Installing/Replacing Inner Cover on Left or Right Front Seat Backrest (Normal/Manual)




52 13 041 - Removing and installing / replacing inner cover on left or right front seat backrest (normal/ manual)





Necessary preliminary tasks:
- Remove front seat Removing and Installing Left or Right Front Seat (Normal / Manual)

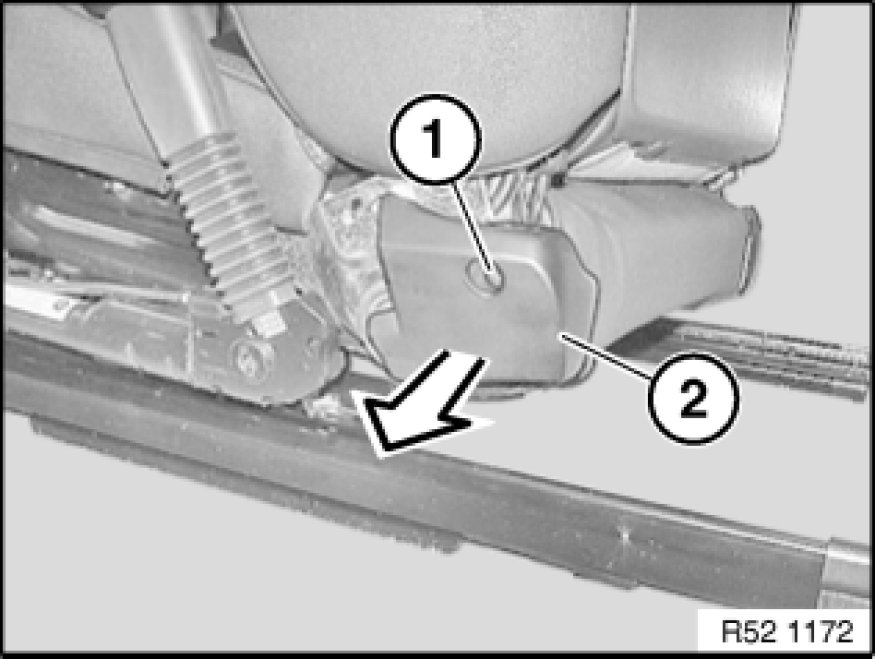

Release screw (1).
Remove trim (2) from inside of seat.
