Steering Components - Checking for Zero Clearance, Leaks, Damage and Wear

00 00 ... Steering components: checking for zero clearance, leaks, damage and wear






Checking play:
- For hydraulically assisted steering systems, the engine must be running

- For electrically assisted steering systems, the ignition must be on

- Steering wheel:
Move steering wheel back and forth and check for play

- Tie rod joint:

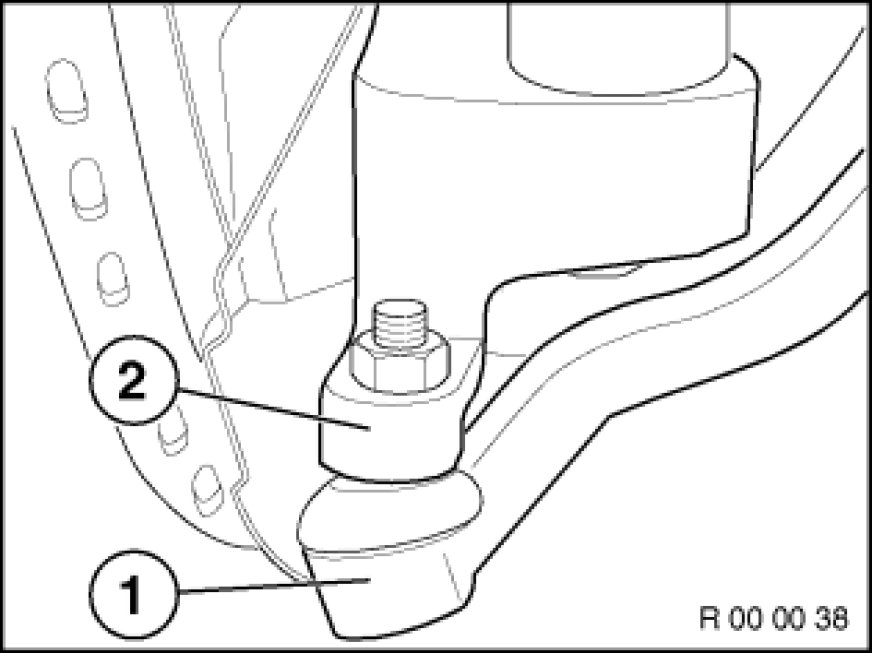

There must no clearance between tie rod arm (2) and tie rod joint (1).

Checking for leaks:

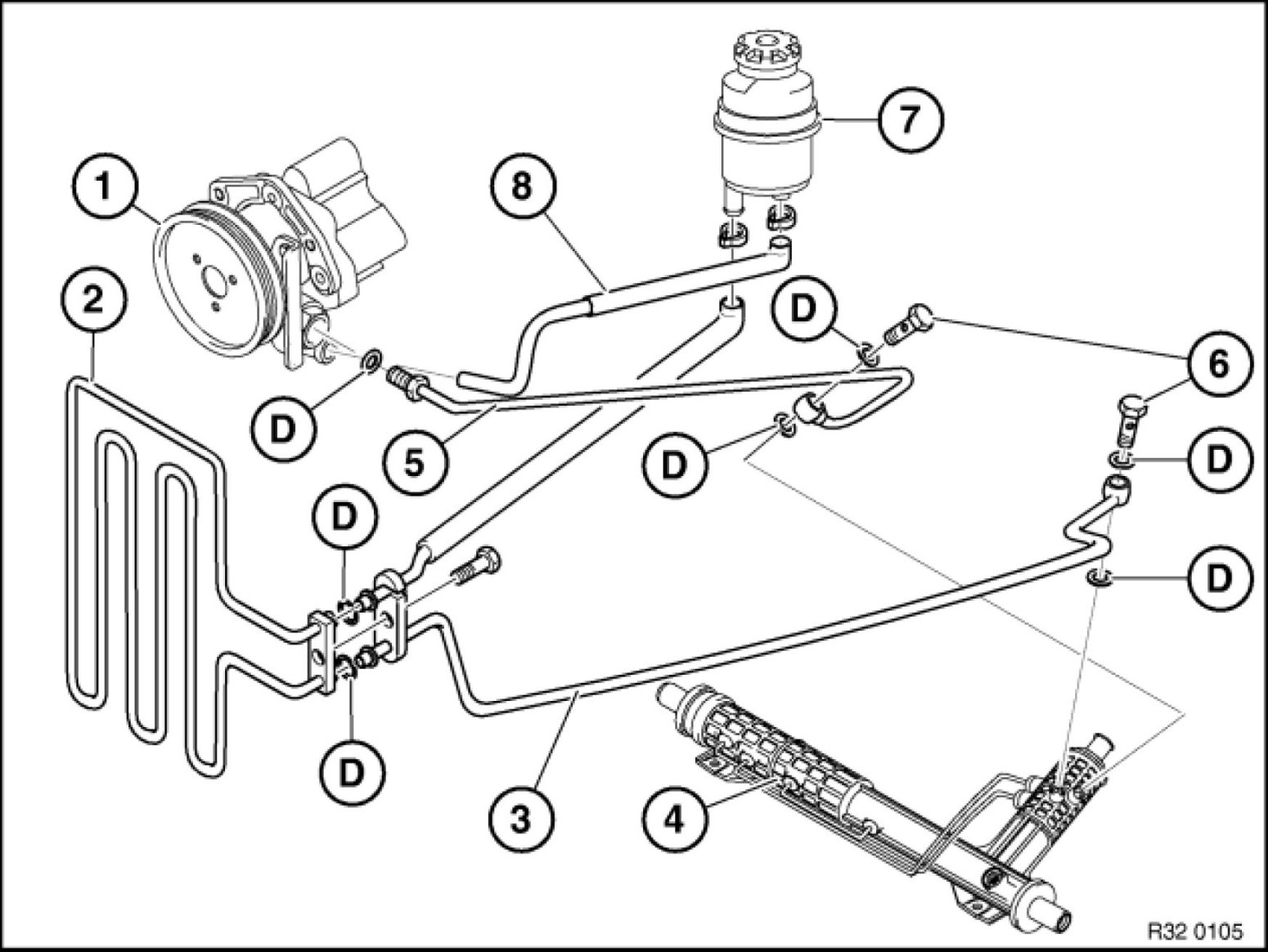

The following illustration shows the arrangement of the power steering components and lines.








Index
1. Pump
2. Power steering cooler
3. Return line
4. Steering gear
5. Pressure line
6. Hollow screw
7. Container
8. Suction hose
D. Sealing ring

Check all visible connections, hoses, lines and steering gear for traces of fluid.






Checking for damage and wear:
Check gaiters, flexible disc and axle and tie rod sleeves for damage (e.g. cracks, holes), for leaks or missing clamping bands on gaiters.
