BMW
>>
2009
>>
335i Coupe (E92) L6-3.0L Turbo (N54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
Antitheft and Alarm Systems

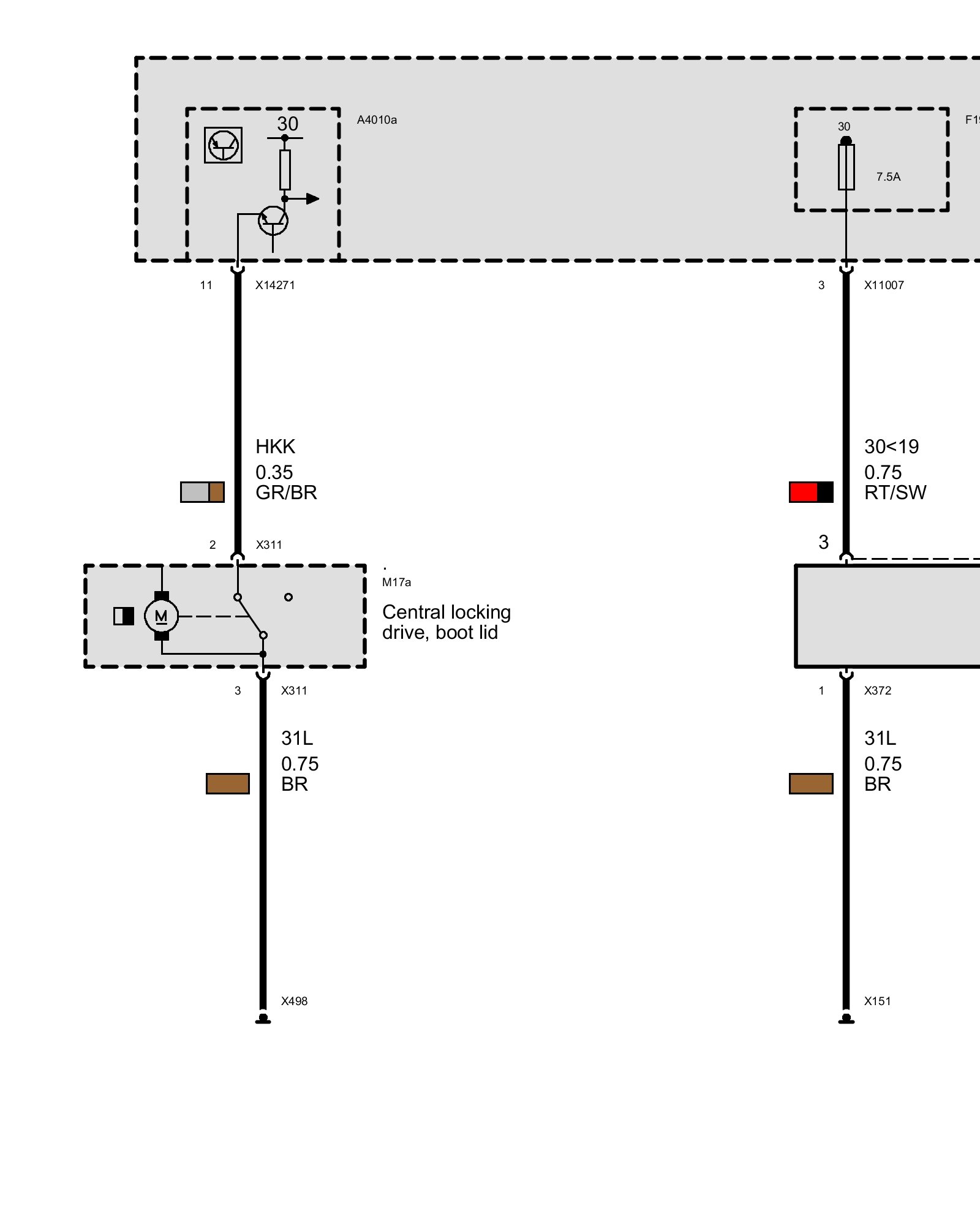

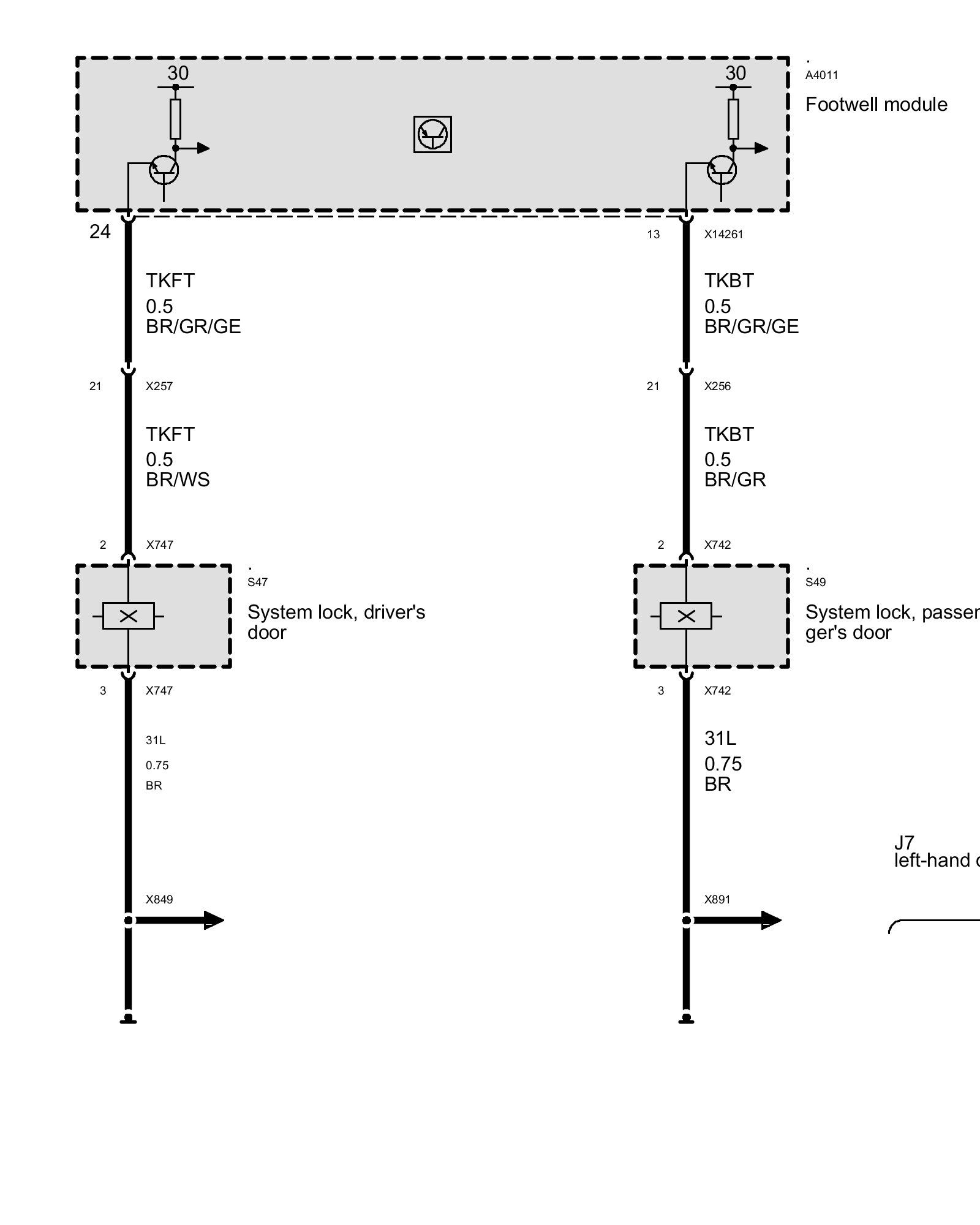

Antitheft Alarm System
Up to 03/07
As of 03/07 Up to 09/07
As of 09/07
