18 32 082 Removing and Installing/Replacing Exhaust Pipe with Catalytic Converter for Cylinders 4-6

18 32 082 Removing and installing/replace exhaust pipe with catalytic converter for cylinders 4-6 (N54)







WARNING:
Risk of burning.
This repair work may only be carried out on an exhaust system which has cooled down.







Necessary preliminary tasks:
- Remove exhaust system.

NOTE: Interface for exhaust pipe (2) is designated by a notch in the pipe.







Disconnect and deburr exhaust pipe (2) at marked position.







Installation note:

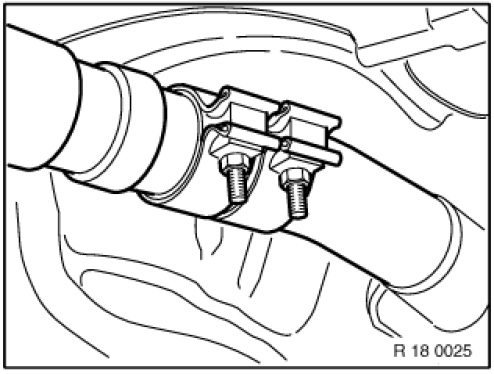

Connect exhaust pipe to centre silencer by means of clamp and align.
Align clamp and tighten down.
Tightening torque 18 00 5AZ.







NOTE: Check exhaust system for leaks.
