Entertainment System Control Module: Service and Repair




65 50 011 - Removing and installing (replacing) video module for on-board monitor





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Disconnect battery negative lead 61 20 900 Disconnecting and Connecting Battery Negative Lead.
- Remove luggage compartment trim on left Removing and Installing/Replacing Left Luggage Compartment Wheel Arch Trim.





Note:
Follow instructions for handling optical fibres 61 00 ... Notes on Handling Optical Fibers.

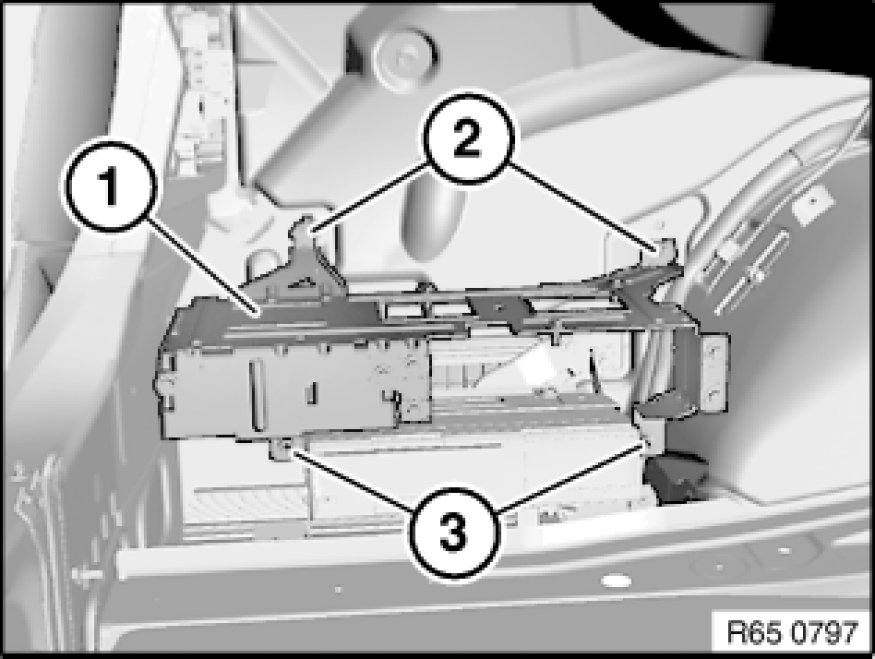

Unfasten screws (2) and nuts (3).
Pull back video module for on-board monitor (1) and disconnect plug connections.
Remove video module for on-board monitor (1) complete with holder.





Replacement:

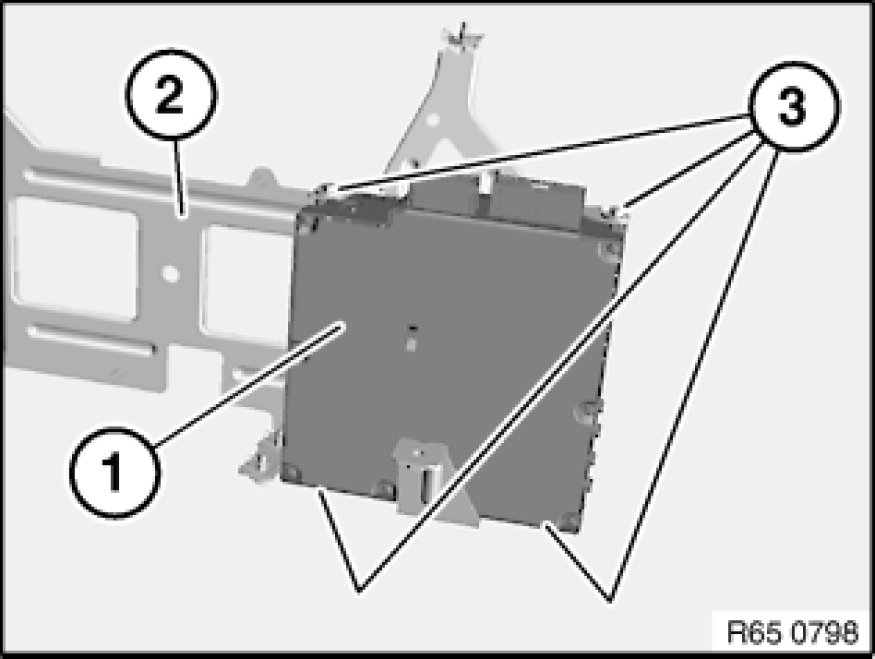

Release screws (3) and remove holder (2) from video module for on-board monitor (1).





Replacement:
Carry out programming/coding Programming and Relearning.
