51 45 376 Removing and Installing/Replacing Decorative Strip on Left Fresh-Air Grille



51 45 376 Removing And Installing/Replacing Decorative Strip On Left Fresh-Air Grille

Special tools required:

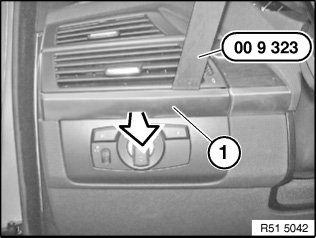

Lever out decorative strip (1) with special tool 00 9 323 in direction of arrow and remove.







Installation:

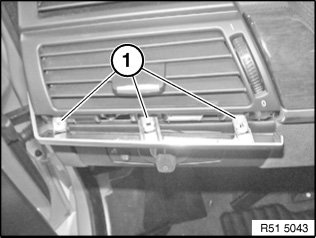

Make sure retainers (1) are correctly seated on decorative strip.
