64 11 376 Removing and Installing (Replacing) Control Panel For Heating and Air Conditioning System

64 11 376 Removing And Installing (replacing) Control Panel For Heating And Air Conditioning System







Necessary preliminary work:
- Remove middle cover for the dashboard

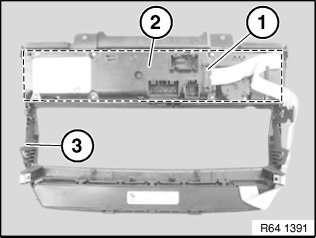

Disconnect plug connection (1).
Unclip control panel (2) along dashed line from cover (3) and remove.







When replacing or programming:
- Carry out normalization of electric steering column adjustment







Replacement:
Carry out programming/encoding.
