Ground Connection X167



Ground Connection X167

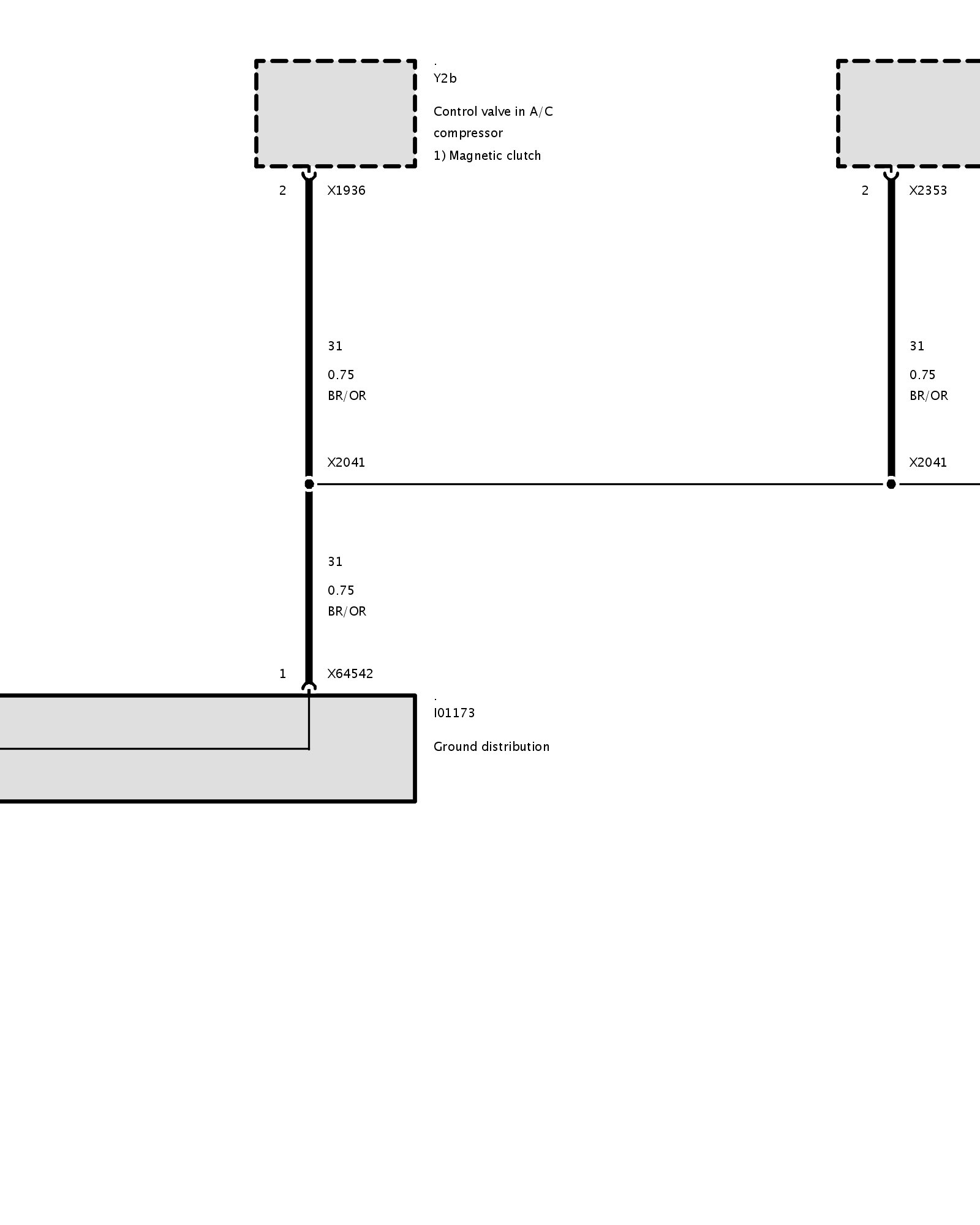

Part 1:

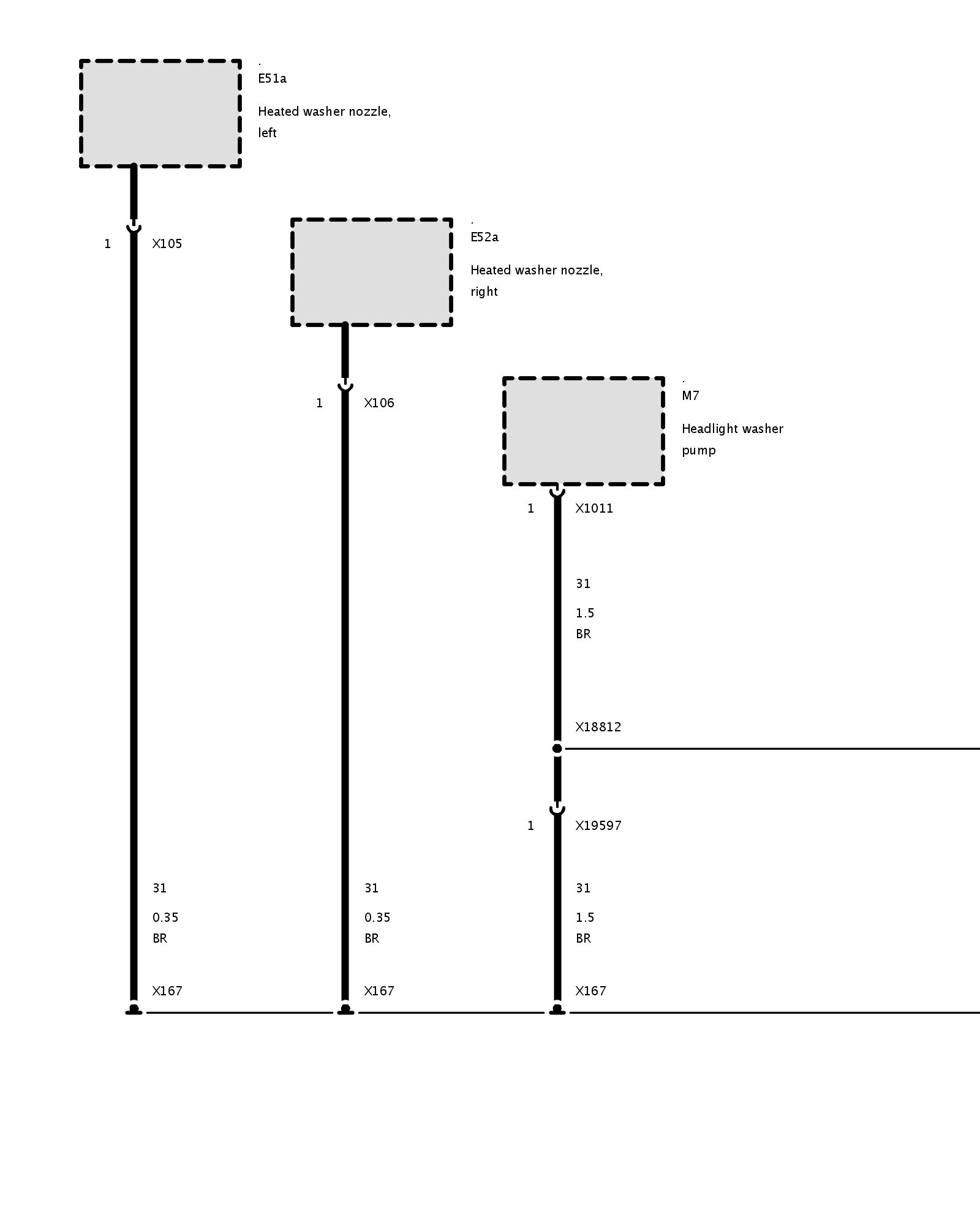

Part 2:




Part 3:




Part 4:




Part 5:




Part 6:




Part 7:
