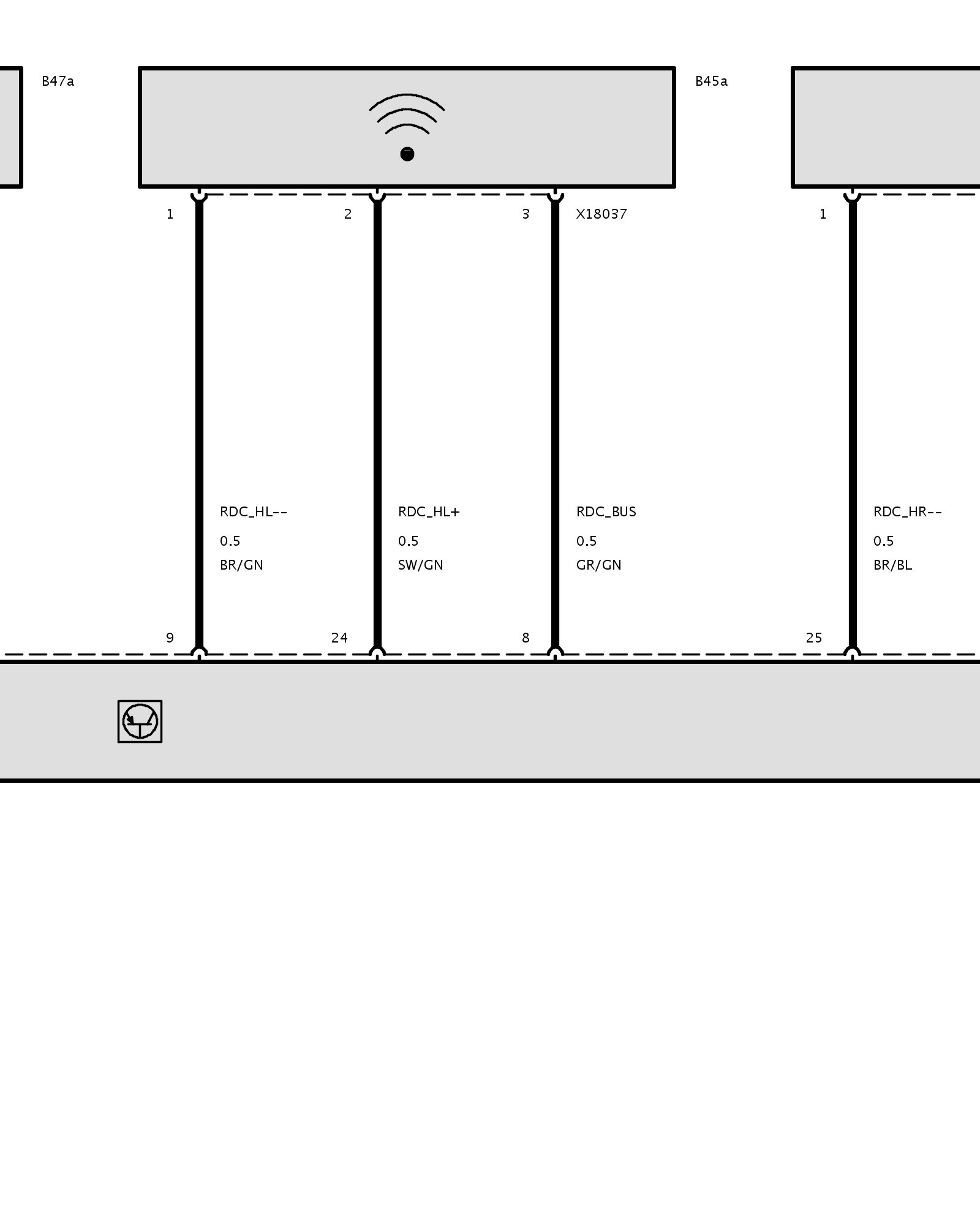

A85a Tire Pressure Control ( RDC )



A85a Tire Pressure Control (RDC)


Part 1:




Part 2:




Part 3:




Part 4:




Part 5:
