Removing and Installing/Replacing Inspection Trim for Glass Slide/Tilt Sunroof




54 12 180 - Removing and installing/replacing inspection trim for glass slide/tilt sunroof





Necessary preliminary tasks:
- Remove complete glass slide/tilt sunroof Removing and Installing Complete Glass Slide/Tilt Sunroof

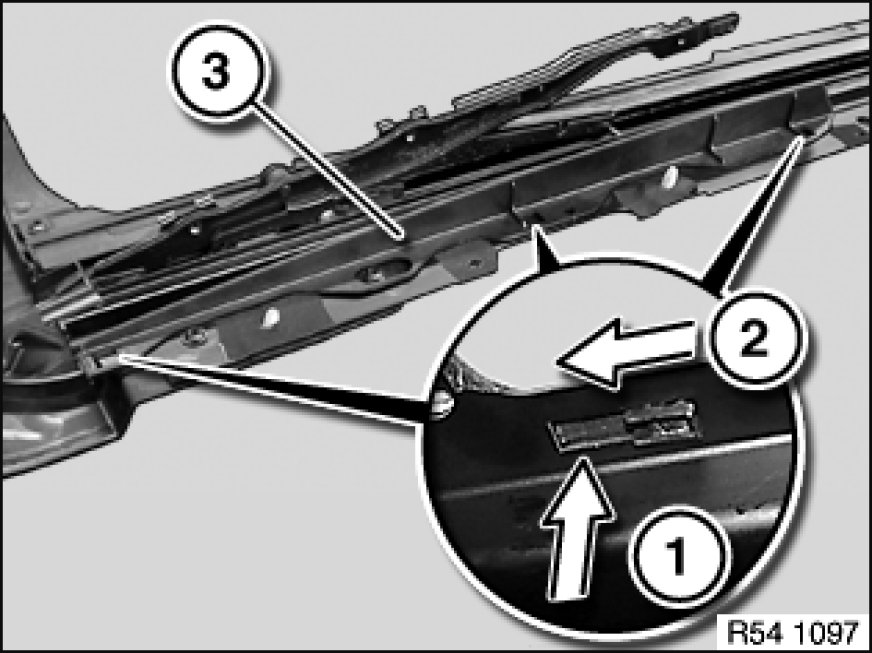

Inspection trim (3) in direction of arrow:
1. Raise upwards and unlock
2. Slide forwards
Remove inspection trim (3) towards top.
