Front Seat - Normal / Electric

52 14 ... Performing function check with adapter cable (for seat repairs)







Special tools required:

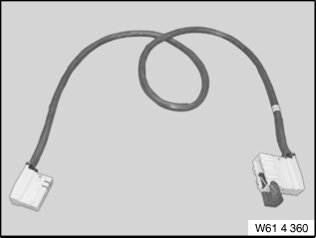

- 61 4 360







NOTE: The function check on a repaired driver's or front passenger seat can be performed outside the vehicle by using adapter cable 61 4 360.







Use:

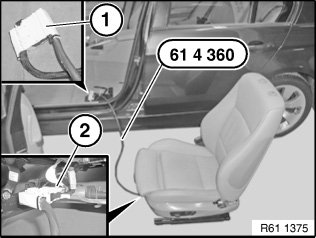

Adapter cable 61 4 360 is connected to vehicle wiring harness (1) and removed seat (2).
