51 21 ... Removing weather strip with special tool 00 9 324 at front or rear







Special tools required:
- 00 9 318
- 00 9 324







Open side window completely.

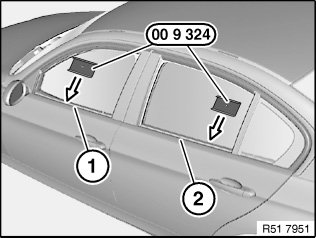

Front door:
Insert special tool 00 9 324 at front (at A-pillar) in window cavity (1) (TOP label pointing upwards).

Rear door:
Insert special tool 00 9 324 at rear (at C-pillar) in window cavity (2) (TOP label pointing upwards).

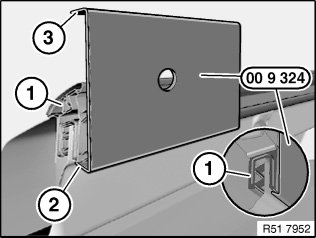

NOTE: For purposes of clarity, graphic shows inner door panel and side window removed.

Special tool 00 9 324 must be correctly guided under weather strip (1).
2 Short leg, bottom
3 Long leg, top (TOP)







NOTE: Start at the front or rear, depending on the model.

IMPORTANT:
- Risk of damage.
- Raise weather strip (3) no more than 5 mm in each levering operation, otherwise the strip will be bent.

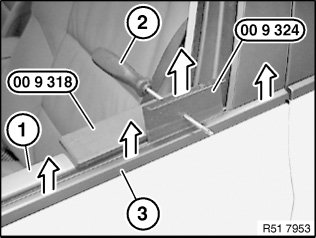

Position special tool 00 9 318 on door trim panel (1).
Slide screwdriver (2) into special tool 00 9 324 and weather strip (3) upwards no more than 5 mm.
Guide special tools 00 9 324 and 00 9 318 towards front/rear and lever out weather strip (3).
