27 10 710 Replacing Classification Resistor For Servomotor (ATC 700)

27 10 710 Replacing classification resistor for servomotor (ATC 700)





Important!
Delete previous resistance values when replacing the resistor.
Using BMW diagnosis system, work through test program in accordance with instructions.

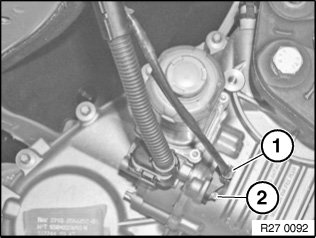

Disconnect connector (1).

Release screw (2) and remove resistor.

Tightening torque 27 00 14AZ.
